China aluminum composite panels, especially the china aluminum corrugated core composite panel, have become a cornerstone in modern architectural and construction projects worldwide. These panels combine lightweight properties, durability, aesthetic versatility, and fire resistance, making them a preferred choice for building facades, interior decoration, and signage. This article explores in detail the manufacturing process of these panels, the technology involved, and the unique features of the aluminum corrugated core composite panels produced in China.

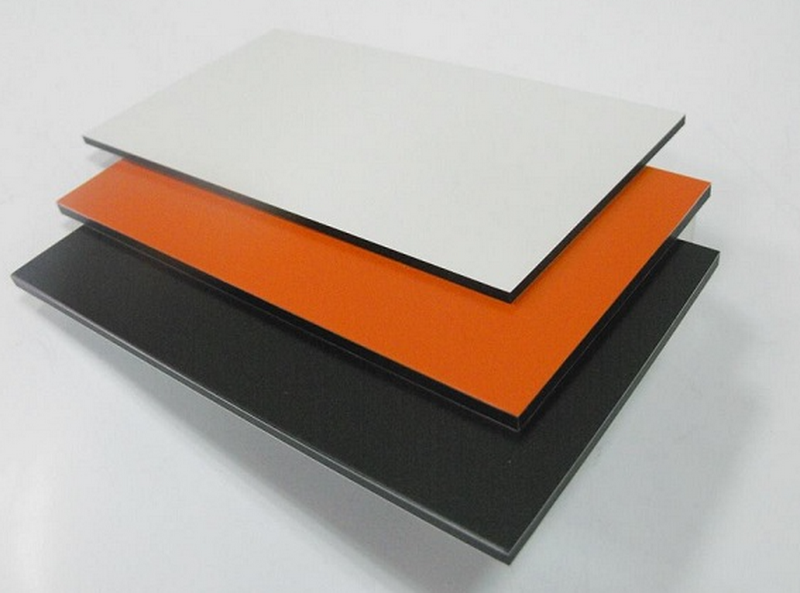

Before diving into the manufacturing process, it's essential to understand what a china aluminum corrugated core composite panel is. This panel consists of two aluminum sheets bonded to a corrugated aluminum core, creating a lightweight yet strong composite material. Unlike traditional honeycomb panels, the corrugated core offers superior strength and fire resistance at a more cost-effective price. The core is typically made from AL3003H16-H18 aluminum alloy, with thicknesses varying from 0.4mm to 1.0mm for the face sheets and 0.15mm to 0.3mm for the core[2][5].
The manufacturing of aluminum composite panels (ACP) in China involves a series of precise, automated steps to ensure quality, durability, and aesthetic appeal. The process can be broadly divided into raw material preparation, coating, lamination, finishing, and quality control.
The process begins with selecting high-quality aluminum coils, usually made from alloys such as AA1006 H14, 1100 H24, 3003, or 6063. These aluminum coils are cleaned thoroughly to remove lubricants, anti-oxidants, and dirt accumulated during transportation. The cleaning process includes spray degreasing, water washing, neutralization, chemical treatment, drying, and cooling to prepare the aluminum surface for coating and lamination[12][14].
The cleaned aluminum coils undergo a coating process to enhance durability and appearance. The most common coatings include:
- PVDF (Polyvinylidene Fluoride) Coating: Offers excellent weather resistance and color retention.
- Polyester (PE) Coating: Economical and suitable for less demanding applications.
- Special Effects Coatings: Such as wood grain, stone grain, mirror, or brushed finishes.
The coating process involves spraying the coating material onto the aluminum surface, followed by hot air circulation baking to cure the paint. This step ensures a uniform, durable finish that can withstand harsh environmental conditions[12][14].
The core of the panel is crucial for its strength and fire resistance. For the china aluminum corrugated core composite panel, the core is formed by cold pressing aluminum into a corrugated shape on the same production line. This corrugated core is bonded between two aluminum sheets using a thermosetting two-component structural resin adhesive, which is applied in an arc shape to increase bonding strength and durability[2][5].
The lamination process can be done using different methods:
- Cold Composite Method: The core and aluminum sheets are bonded at room temperature.
- Thermal Composite Method: Heat and pressure are applied to bond the layers.
- Continuous Composite Method: The process is continuous for high-volume production.
- Intermittent Composite Method: Batch production with breaks between cycles[8][12].
After lamination, the panels are cut to the required size using specialized cutting machines that ensure clean, precise edges. Grooving is performed on the bottom aluminum sheet to facilitate bending and shaping. The groove depth is typically 0.15-0.2mm, and the angle is maintained at 91 degrees to ensure a tight fit during assembly[5].
The panels are bent according to design specifications using bending clamps and rollers. For the corrugated core panels, bending is carefully controlled to avoid damaging the coating or the core structure. Bending angles and radii are adjusted to meet architectural requirements, with special attention to maintaining waterproofing and structural integrity[1][5].
Once shaped, the panels receive final surface finishing, including cleaning and application of a protective film to prevent scratches during transportation and installation. This film is removed on-site before installation[15].
Quality control is conducted throughout the manufacturing process, with final inspections ensuring that the panels meet specifications for thickness, adhesion strength, flatness, and finish. Automated systems and manual checks prevent defective panels from leaving the factory. The panels are then packed securely for shipment[1][15].
Chinese manufacturers have heavily invested in automated production lines to improve efficiency and quality. For example, factories use:
- German Henkel pure water pretreatment systems.
- Japanese Randbury automatic electrostatic spraying systems.
- Automated fluorocarbon spray coating lines.
- Wood grain and stone grain transfer printing technologies.
- Ultra-large double screw continuous hot-press production lines[4].
These advanced machines allow China to produce millions of square meters of aluminum composite panels annually, including specialized products like the china aluminum corrugated core composite panel with superior fire resistance and thermal insulation[6].
- Fire Resistance: The panels are rated A2 grade non-combustible, making them suitable for fire-sensitive applications[2].
- Thermal Insulation: The corrugated core creates air channels that improve heat dissipation and insulation, reducing energy costs in buildings[2].
- Lightweight and Strong: The metal-only composition provides strength comparable to honeycomb panels but with less weight and cost[2].
- Environmental Friendliness: The panels contain no plastic components, making them recyclable and eco-friendly[2].
- Aesthetic Versatility: Available in various finishes including imitation stone, wood grain, brushed, and mirror surfaces[2][14].
The manufacturing of china aluminum corrugated core composite panels is a sophisticated process combining high-quality raw materials, advanced coating technologies, precise lamination methods, and rigorous quality control. These panels offer excellent fire resistance, thermal insulation, structural strength, and aesthetic flexibility, making them a top choice in the global construction industry. China's investment in automated equipment and continuous innovation ensures that these panels meet international standards while remaining cost-effective.
The panels use aluminum alloys such as AL3003H16-H18 for the face sheets and core, combined with thermosetting two-component structural resin adhesives to bond the layers securely.
The corrugated core provides comparable strength and better fire resistance at a lower cost. It also creates air channels that enhance thermal insulation and reduce heat transfer.
Common coatings include PVDF for high durability and weather resistance, polyester for economical applications, and specialty finishes like wood grain, stone grain, brushed, and mirror surfaces.
Quality control includes cleaning and chemical treatment of aluminum coils, precise coating and lamination processes, cutting and grooving accuracy, and final inspections using automated and manual methods.
Yes, these panels are made entirely of metal with no plastic components, making them recyclable and environmentally sustainable.
