Composite panel joiners are critical components in modern construction and manufacturing, playing a vital role in enhancing the structural integrity of composite panel assemblies. These joiners not only connect individual panels but also contribute significantly to the overall strength, durability, and performance of structures built using composite panels. This article explores how composite panel joiners improve structural integrity, the types of joiners available, their applications, installation techniques, and the benefits they bring to various industries.
Composite panels typically consist of two outer layers bonded to a lightweight core material, such as aluminum honeycomb or polyethylene. This composition offers a high strength-to-weight ratio, corrosion resistance, and aesthetic versatility, making composite panels ideal for cladding, façades, flooring, and vehicle construction.
However, the panels alone cannot form a structurally sound assembly without effective joining systems. Composite panel joiners are specialized components designed to connect these panels securely, ensuring load transfer, alignment, and resistance to environmental stresses.
Composite panel joiners create a continuous structural framework by linking panels firmly, allowing loads such as tension, compression, bending, and shear to be evenly distributed across the assembly. This prevents localized stress concentrations that could lead to panel failure or joint separation. By forming a monocoque structure, the joiners help the shell act as an integrated unit, sharing loads with the underlying chassis or frame, enhancing overall strength[6].
Materials expand and contract with temperature changes. Composite panel joiners, especially those with rubber inserts or flexible components, accommodate these movements without compromising the joint's integrity. For example, PROBOND H-Joiners include rubber inserts every 400mm to allow expansion and contraction, preventing cracking or warping and ensuring long-term durability[3][7].
Joiners are designed to provide tight seals between panels, preventing water ingress and protecting internal structures from moisture damage. Many joiners are made from corrosion-resistant aluminum alloys with protective coatings, which prolong the life of the panel system and maintain structural integrity in harsh environments[3][7].
Composite panel joiners guide the precise alignment of panels during installation, ensuring seamless joints that contribute to structural stability. Features like stops and nibs in joiners help maintain consistent adhesive thickness and panel positioning, reducing installation errors that could weaken the structure[6].
Joiners often include integrated fixing points on both interior and exterior surfaces, enabling secure attachment of other structural or decorative elements such as awnings, cabinets, or signage. This integration avoids weakening the panels by drilling or cutting and maintains overall strength[6].
There are several types of composite panel joiners, each designed for specific applications and panel thicknesses:

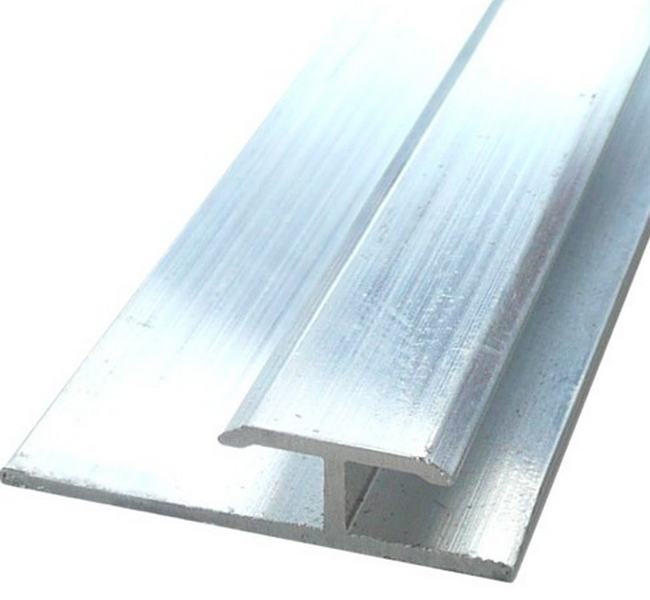

- H-Joiners: These are aluminum extrusions shaped like the letter "H" used to join two panels edge-to-edge. They provide strong mechanical connections and are often color-matched to panels for aesthetic appeal. The PROBOND H-Joiner is a prime example, designed for 3mm panels with expansion accommodation[3][7].
- Wall Joiners: Used to join vertical wall panels, often designed to handle different panel thicknesses (e.g., 29mm wall panel to 40mm roof panel). They include features to ensure proper adhesive application and alignment[6].
- Roof Joiners: Specialized for joining roof panels, these joiners help maintain waterproofing and structural continuity on horizontal or inclined surfaces[4][6].

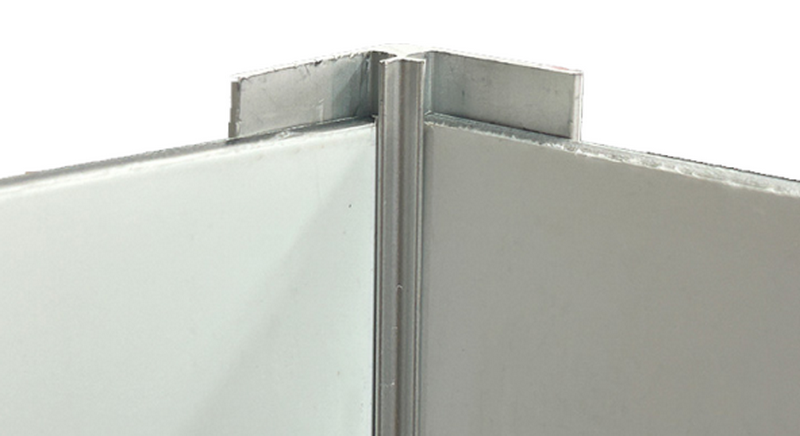

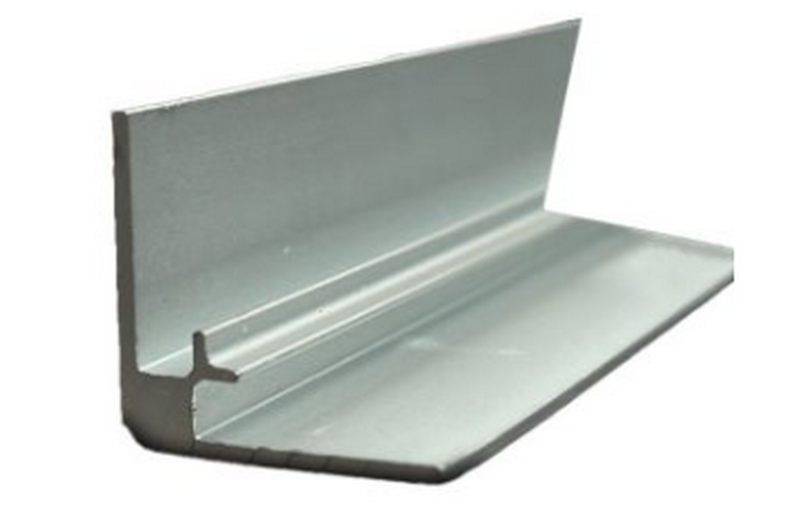

- Edge and Corner Joiners: Designed to create neat, strong corners and edges, these joiners provide both structural support and a clean finish.
Proper installation of composite panel joiners is essential to maximize structural integrity:
- Surface Preparation: Clean, dry, and debris-free surfaces are critical for strong adhesive bonding between panels and joiners[1][5].
- Cutting and Sizing: Accurate panel and joiner cutting ensures tight fits and proper alignment. Use precision tools for clean edges[1][5].
- Adhesive Application: Use high-quality, panel-specific adhesives applied evenly to both panel and joiner surfaces. Adhesive thickness is controlled by joiner design features like nibs and stops[1][6].
- Clamping and Pressure: Apply even pressure with clamps or weights to ensure full adhesive contact and curing[1][5].
- Allow for Expansion: Incorporate joiners with rubber inserts or flexible components to accommodate thermal movement and prevent stress buildup[3][7].
Composite panel joiners are widely used across various industries:
- Building Facades and Cladding: Joiners enable large composite panels to be assembled into weatherproof, strong exterior walls and decorative façades[2].
- Vehicle and Caravan Construction: Joiners help create lightweight, durable shells that share loads with chassis frames, improving off-road vehicle strength and longevity[4][6].
- Elevator and Lift Interiors: Composite panels joined with specialized joiners provide lightweight, attractive, and durable lift cladding[2].
- Signage and Architectural Features: Joiners allow for seamless panel connections that enhance both aesthetics and structural performance[3].
- Improved Structural Strength: Joiners transform individual panels into a unified structure capable of withstanding mechanical stresses.
- Durability and Longevity: Corrosion-resistant materials and expansion accommodation prevent joint degradation over time.
- Aesthetic Appeal: Color-matched joiners and seamless connections enhance the visual quality of finished projects.
- Simplified Maintenance: Modular joiner systems allow easy panel removal and replacement without damaging the structure[2].
- Cost and Time Efficiency: Faster installation and reduced material waste contribute to lower project costs[2][6].
To better understand composite panel joiners and their role in structural integrity, the following types of visual aids are recommended:
- Diagrams of Joiner Profiles: Illustrate H-joiners, wall joiners, and roof joiners showing how panels fit into them.
- Step-by-Step Installation Videos: Demonstrate surface preparation, adhesive application, panel alignment, and clamping processes.
- 3D Animated Models: Show load distribution and expansion accommodation within joined composite panel assemblies.
- Project Case Study Images: Before and after photos of buildings or vehicles using composite panels joined with specialized joiners.
Composite panel joiners play a crucial role in improving the structural integrity of composite panel assemblies. By providing strong, durable connections that distribute loads evenly, accommodate thermal movements, and resist environmental damage, these joiners enable composite panels to perform at their best in a variety of demanding applications. Their design and material choices ensure longevity and aesthetic appeal while simplifying installation and maintenance. Whether used in architectural façades, vehicle construction, or interior cladding, composite panel joiners are indispensable for achieving reliable, high-performance structures.
Composite panel joiners are specialized components that connect composite panels securely, ensuring structural continuity, load distribution, and protection against environmental factors. They are essential for creating strong, durable, and stable panel assemblies in construction and manufacturing.
Many joiners include flexible elements such as rubber inserts that allow panels to expand and contract with temperature changes without causing joint failure, maintaining the integrity and appearance of the structure.
Yes, there are joiners designed to accommodate various panel thickness combinations, such as wall-to-roof or wall-to-wall panels, ensuring a tight fit and structural compatibility.
Most joiners are made from corrosion-resistant aluminum alloys with protective coatings, providing strength, durability, and aesthetic matching with composite panels.
Joiners are often designed to be color-matched to panels and serve as trim, creating a neat, seamless finish that enhances the overall appearance of the installation.
