Composite panel screws are specialized fasteners designed to securely attach composite panels to various substrates such as steel, timber, or aluminum frames. These screws are engineered to accommodate the unique properties of composite materials, ensuring a durable, weather-resistant, and aesthetically pleasing installation. This article explores the working principles, types, applications, installation techniques, and benefits of composite panel screws, providing a comprehensive guide for professionals and DIY enthusiasts alike.
Composite panel screws are fasteners specifically designed for use with composite panels-materials made by bonding two thin facings to a lightweight core, often combining metals like aluminum with plastics or honeycomb structures. These screws differ from traditional fasteners in thread design, head shape, and corrosion resistance to accommodate the composite's physical and mechanical characteristics.

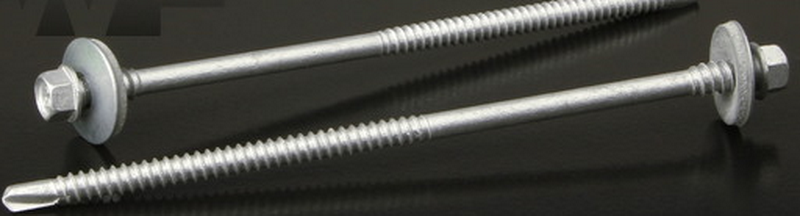

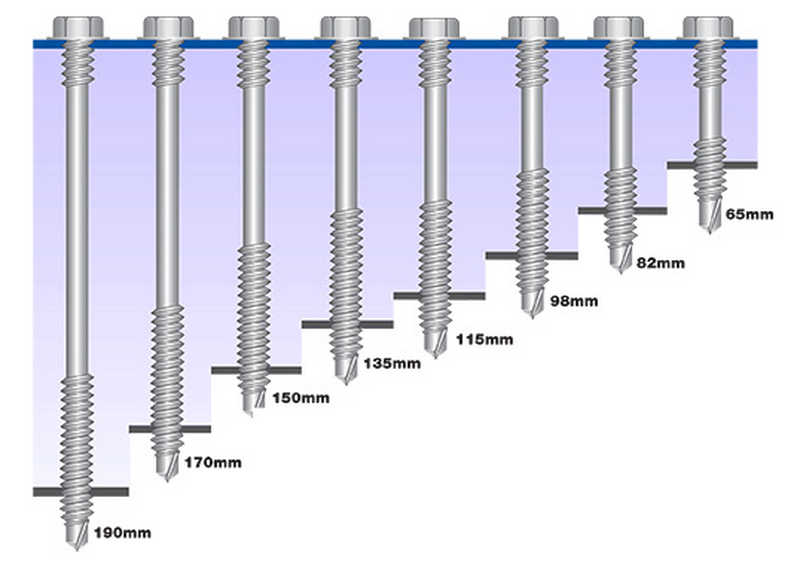

Composite panel screws typically feature dual-thread designs. The lower thread is usually a self-drilling or self-tapping thread that penetrates the supporting structure (e.g., steel purlin or timber), while the upper thread is designed to engage the composite panel's outer skin. This design ensures:
- Firm anchoring into the substrate.
- Support and compression of the panel's outer skin to maintain a watertight seal.
- Reduction of panel deformation under load.
The upper thread often has a larger diameter or is non-threaded immediately below the head to ensure the washer compresses the panel surface evenly, preventing damage and maintaining sealing integrity.
Many composite panel screws come with self-drilling points that eliminate the need for pre-drilling, speeding up installation and reducing labor costs. The sharp drill tip penetrates metal or timber substrates effectively, while the coarse threads provide a strong grip.

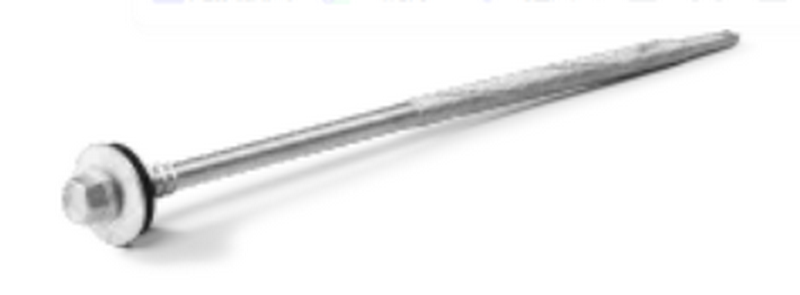

Composite panel screws commonly include bonded washers made of EPDM or neoprene, which provide a watertight seal around the screw hole, preventing water ingress and corrosion. The washer also distributes the load from the screw head, reducing stress concentrations on the panel surface.
These screws have a drill-like point that can pierce metal or timber substrates without pre-drilling. They are ideal for metal roofing and wall cladding composite panels.
Designed with a larger thread diameter near the head to support the composite panel skin, these screws prevent the panel from deforming under load.
These provide enhanced sealing and corrosion resistance, crucial for outdoor applications exposed to weather.
Some composite panel fasteners are surface bonded with adhesives or embedded during the panel molding process, especially in automotive applications where invisibility and structural integrity are crucial.
Composite panel screws are widely used in:
- Building Facades and Cladding: Attaching aluminum composite panels (ACP) to steel or timber frameworks.
- Roofing Systems: Securing composite roofing panels to purlins.
- Automotive Industry: Fastening composite panels in vehicle bodies with embedded or surface bonded fasteners.
- Industrial Equipment: Joining composite panels in machinery or enclosures.
- Outdoor Furniture and Fencing: Fixing composite cladding and fencing panels.
- Ensure the panel surface is clean and free of debris.
- For metal substrates, confirm compatibility with the screw material to avoid galvanic corrosion.
- Pre-drilling is generally not required for self-drilling screws but may be necessary for thicker or harder substrates.
When pre-drilling, the hole diameter in the panel should be slightly larger than the screw diameter to accommodate thermal expansion and prevent jamming.
- Use an appropriate power screwdriver or torque wrench.
- Tighten screws until the washer compresses to form a seal without deforming the panel.
- Maintain recommended spacing between screws, typically every 300–600 mm depending on panel size and wind load.
Composite panels expand and contract with temperature changes. Screws and washers must allow slight movement to prevent cracking or warping.
- Secure and Durable Fixing: Designed for high tensile and torsional loads.
- Weather Resistance: Washers and screw coatings prevent water ingress and corrosion.
- Ease of Installation: Self-drilling points reduce labor and installation time.
- Aesthetic Finish: Screws with color-matched heads or hidden fastening systems provide clean looks.
- Compatibility: Suitable for various substrates including steel, timber, and aluminum.
- Flexibility: Some fasteners allow for panel movement under wind or thermal loads without loosening.
Composite panel screws are essential components engineered to meet the unique demands of composite materials. Their specialized design-including dual threads, self-drilling points, and sealing washers-ensures secure, durable, and weather-resistant fastening. Whether for architectural cladding, roofing, automotive panels, or industrial applications, these screws provide a reliable solution that balances strength, aesthetics, and ease of installation. Proper selection and installation of composite panel screws can significantly extend the life and performance of composite panel systems.
Composite panel screws have specialized thread designs, often dual-threaded, with self-drilling points and bonded washers to accommodate the unique properties of composite panels, providing secure fixing without damaging the panel surface.
Yes, many composite panel screws are designed with self-drilling tips and threads suitable for metal or timber, making them versatile for various construction applications.
Washers, typically made of EPDM or neoprene, provide a watertight seal around the screw hole, prevent corrosion, and distribute load to avoid panel damage.
Pre-drilling is usually not required for self-drilling composite panel screws but may be necessary for thicker or harder substrates or when precise hole sizing is needed to allow for thermal expansion.
The screw design, including the use of washers and slightly oversized holes, allows the composite panels to expand and contract with temperature changes without causing stress or damage to the panel.
