Bonding Carbon Fiber Reinforced Polymer (CFRP) to aluminum honeycomb is a critical process in creating lightweight, high-performance composite structures. These structures are widely used in aerospace, automotive, and other industries where weight reduction and strength are paramount. In this article, we will explore the best practices for bonding CFRP to aluminum honeycomb, including surface preparation, adhesive selection, and application techniques.

Introduction to Aluminum Honeycomb and CFRP

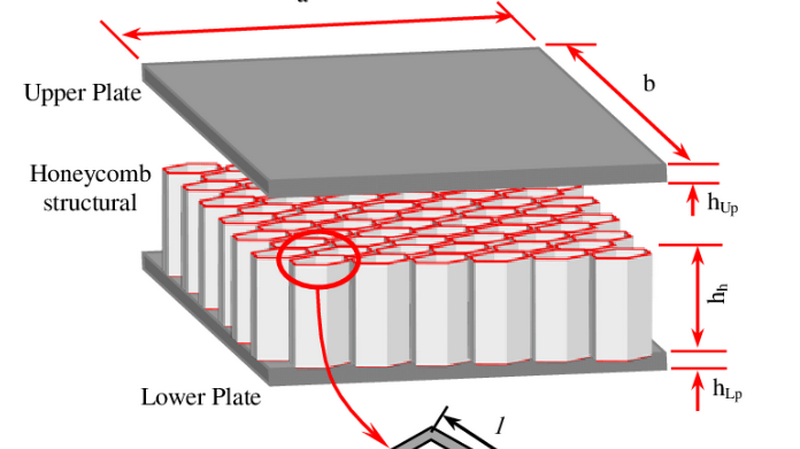

Aluminum honeycomb is a lightweight core material made from aluminum foil, which is expanded and bonded to form a hexagonal structure. This structure provides excellent strength-to-weight ratio and is often used in sandwich panels. CFRP, on the other hand, is a composite material consisting of carbon fibers embedded in a polymer matrix, known for its high strength, stiffness, and low weight.

Surface Preparation

Surface preparation is crucial for achieving strong bonds between CFRP and aluminum honeycomb. The surfaces must be free of contaminants such as dust, oil, or grease. Cleaning with a degreasing agent like isopropyl alcohol or acetone is recommended. Additionally, lightly abrading the surfaces can enhance the bonding area by increasing the surface roughness.

Video: Surface Preparation for Bonding

Watch a video on surface preparation techniques for bonding composites:

Adhesive Selection

Choosing the right adhesive is vital for bonding CFRP to aluminum honeycomb. Epoxy adhesives are commonly used due to their high strength and durability. Two-component epoxy systems like Araldite 420 A/B are popular choices for bonding honeycomb panels because they offer excellent shear strength and moisture resistance.

Techniques

The application technique involves applying the adhesive to both the CFRP and the aluminum honeycomb surfaces. It is essential to ensure that the adhesive is evenly distributed and that air bubbles are removed during the bonding process. Clamping or using a vacuum bag can help maintain pressure and prevent air entrapment.

Video: Applying Adhesive and Clamping

Watch a video demonstrating how to apply adhesive and clamp the surfaces:

Interfacial Toughening

To enhance the bonding performance, interfacial toughening techniques can be employed. For example, using a multi-scale toughening film with short aramid fibers grafted with polydopamine and graphene oxide can significantly improve the peak force and energy absorption of the sandwich structure.

The mechanical properties of CFRP/aluminum honeycomb sandwiches are influenced by factors such as fiber orientation, core density, and adhesive strength. Optimizing these parameters can lead to improved bending performance and energy absorption.

Table: Mechanical Properties Comparison

Property	CFRP/Aluminum Honeycomb Sandwich	Traditional Materials
Weight	Lightweight	Heavy
Strength	High	Lower
Stiffness	High	Lower

Applications

These composite structures are used in various applications, including aerospace components, automotive parts, and sports equipment. Their high strength-to-weight ratio makes them ideal for reducing weight while maintaining structural integrity.

Manufacturing Challenges

Despite the advantages of CFRP/aluminum honeycomb composites, manufacturing challenges exist. These include ensuring uniform adhesive distribution, maintaining precise control over curing conditions, and managing the cost of raw materials and production processes. Addressing these challenges requires advanced manufacturing techniques and quality control measures.

Future Developments

Future developments in bonding CFRP to aluminum honeycomb involve exploring new adhesive technologies and surface treatments. For example, the use of nanomaterials and bio-inspired adhesives could further enhance bonding strength and durability. Additionally, advancements in automation and robotics could streamline the manufacturing process, reducing costs and improving consistency.

Conclusion

Bonding CFRP to aluminum honeycomb requires careful surface preparation, appropriate adhesive selection, and precise application techniques. By optimizing these factors, the resulting composite structures can achieve superior mechanical properties, making them suitable for demanding applications.

Frequently Asked Questions

1. What is the best adhesive for bonding CFRP to aluminum honeycomb?

The best adhesive for bonding CFRP to aluminum honeycomb is typically a two-component epoxy system, such as Araldite 420 A/B, due to its high shear strength and moisture resistance.

2. How do I prepare the surfaces for bonding?

Surface preparation involves cleaning the surfaces with a degreasing agent and lightly abrading them to increase surface roughness and ensure a strong bond.

3. What are the benefits of using aluminum honeycomb with CFRP?

Using aluminum honeycomb with CFRP provides a lightweight structure with high strength-to-weight ratio, excellent for applications requiring weight reduction and structural integrity.

4. Can I use other core materials instead of aluminum honeycomb?

Yes, other core materials like Nomex or foam can be used, but aluminum honeycomb offers better mechanical properties and a more crushable failure mode.

5. How do I ensure the adhesive is evenly distributed during bonding?

To ensure even distribution of the adhesive, apply it to both surfaces and use clamping or a vacuum bag to maintain pressure and remove air bubbles.
