Installing electrical wiring on an Elite Panel aluminum roof is a task that combines precision, safety, and knowledge of both roofing and electrical systems. Elite Panel roofs, known for their durability and sleek design, often serve as patio covers or outdoor living space roofs. Adding electrical components such as lighting, outlets, or ceiling fans enhances the functionality of these spaces. This comprehensive guide will walk you through the entire process of how to install electric on an Elite Panel aluminum roof safely and effectively.

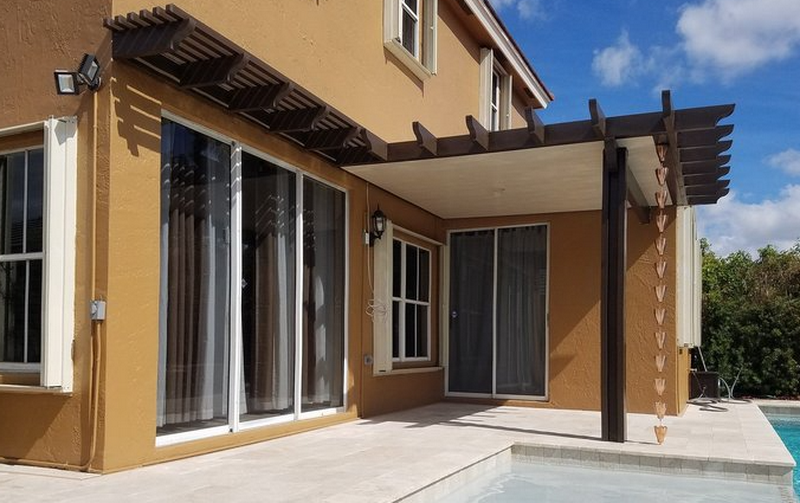

Elite Panel aluminum roofs are premium-grade, insulated roofing systems designed for outdoor spaces like patios and pergolas. They feature:
- High durability with resistance to rust and corrosion.
- Concealed fasteners for a clean, modern look.
- Integrated fan beams for mounting ceiling fans.
- Insulated panels for thermal efficiency.
- Internal drainage systems to prevent water accumulation.
These features make Elite Panels ideal for installing electrical components, but also require careful handling to avoid damage or safety hazards during installation[2].
Before starting electrical work on an Elite Panel aluminum roof, you must:
- Plan Your Electrical Layout: Decide where you want to place outlets, switches, fans, or lights. The Elite Panel system often includes a *fan beam*-a built-in aluminum beam inside the panel designed specifically for mounting ceiling fans and running electrical wiring through it[3][4].
- Safety First: Electrical installation on metal roofs requires licensed electricians to prevent hazards like electrical shorts or shocks. Metal roofs conduct electricity, so improper wiring can energize the entire structure[1].
- Gather Tools and Materials: You will need electrical wires rated for outdoor use, conduit (if wires are run externally), a drill with appropriate bits, wire connectors, GFCI outlets, dimmer switches, ceiling fans, sealants, and protective gear.
- Check Local Codes: Ensure compliance with local building and electrical codes, especially regarding wiring methods and GFCI protection in outdoor spaces.
The fan beam is typically embedded in the bottom middle of the Elite Panel roof panel. It runs the full length of the panel and is designed to allow wiring to pass through it for ceiling fans or lighting fixtures.
- Measure and mark the exact location where you want to install the fan or light fixture.
- Drill a 1-inch hole into the end of the fan beam at the marked location. This hole will allow you to feed electrical wires through the beam[3].
- Feed the electrical wires through the drilled hole inside the fan beam.
- Fish the wires along the beam to the desired fixture location.
- Pull the wires down through the hole where the fixture will be mounted.
If you prefer, electrical conduit can be run on top of the roof panels, but this is less aesthetically pleasing and may require additional weatherproofing[7].
- Secure electrical boxes for outlets, switches, or fan controls to the fan beam or supporting structure.
- Connect the wires according to electrical standards: black (hot), white (neutral), and green or bare copper (ground).
- Use GFCI outlets for safety in outdoor environments.
- Install dimmer switches or fan speed controls as needed.

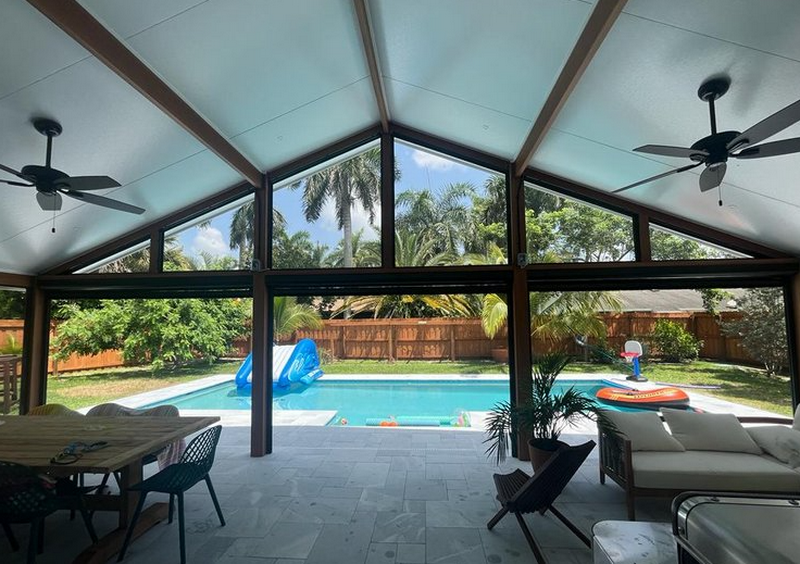

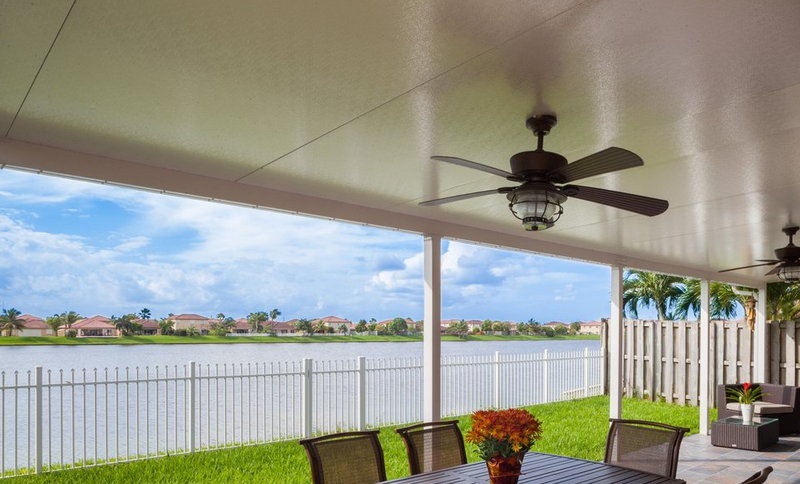

- Attach the ceiling fan mounting bracket to the fan beam using the hole drilled earlier.
- Pull the wires through the bracket and connect them to the fan wiring.
- Secure the fan to the bracket and test the electrical connections.
- Many fans come with wireless remotes; install the receiver inside the fan housing if applicable[1][3].
- Apply sealant around drilled holes and electrical boxes to prevent water intrusion.
- Use denatured alcohol to clean the aluminum surface before applying sealant.
- Seal seams and joints on the roof panels to maintain water tightness.
- Install gutters and fascia with proper weep holes to ensure drainage[5].
- Always hire a licensed electrician for the electrical wiring portion.
- Turn off power at the breaker before starting any electrical work.
- Use weather-resistant electrical components rated for outdoor use.
- Avoid contact between electrical wires and metal parts to prevent electrification of the roof.
- Test GFCI outlets regularly to ensure they function properly.
Installing electric on an Elite Panel aluminum roof enhances your outdoor living space by allowing the addition of lighting, fans, and outlets. The key to a successful installation lies in understanding the roof system's design, especially the integrated fan beam for wiring, and following proper safety and electrical codes. While some steps can be done by skilled DIYers, the electrical connections should always be handled by licensed professionals to ensure safety and compliance. Proper sealing and weatherproofing complete the installation, protecting your investment and ensuring years of reliable use.
Elite Panel roofs designed for electrical installations include an embedded aluminum fan beam running the length of the panel. You can identify it by inspecting the panel specifications or asking your installer. Panels without a fan beam will not have the built-in channel for wiring[3].
Yes, electrical conduit can be run on top of the roof panels, but this is less common and may affect aesthetics. It also requires additional weatherproofing to protect the wiring from elements[7].
Electrical work on metal roofs can be hazardous due to the conductivity of metal. It is strongly recommended to hire a licensed electrician to perform all wiring and connections to ensure safety and compliance with local codes[1].
Outdoor-rated GFCI (Ground Fault Circuit Interrupter) outlets are required for safety in outdoor installations. They protect against electrical shock by shutting off power if a fault is detected[1].
Use high-quality sealants around all drilled holes and electrical boxes. Clean the aluminum surface with denatured alcohol before applying sealant. Also, ensure proper sealing of panel seams and install gutters with weep holes to manage water drainage effectively[5].
