Installing solid rivets in aluminum panels is a fundamental skill in metalworking, especially in aerospace, automotive, and construction industries where strong, permanent joints are essential. Solid rivets provide a reliable, durable fastening method that, when done correctly, ensures structural integrity and longevity. This comprehensive guide will walk you through the entire process of installing solid rivets in aluminum panels, complete with detailed steps, tool recommendations, tips, and multimedia aids to help you master the technique.
Solid rivets are one of the most traditional and widely used types of rivets. They consist of a solid cylindrical shaft with a head on one end. When installed, the tail end of the rivet is deformed or "bucked" to create a second head, securing the materials together. Solid rivets are known for their strength and reliability, making them ideal for aluminum panels in applications requiring durability and safety.
- Aluminum panels to be joined
- Solid aluminum rivets (correct size and type)
- Drill with appropriate drill bits
- Rivet set or rivet gun (manual or pneumatic)
- Bucking bar or rivet anvil
- Hammer (ball-peen or peen hammer)
- Center punch
- Safety glasses and gloves
- Marker or scribe for layout
- Deburring tool or file
Before drilling, accurately mark the locations where the rivets will be installed. Use a center punch to create a small dimple at each mark to guide the drill bit and prevent it from wandering. Proper marking ensures consistent rivet spacing and alignment, which is crucial for structural integrity and aesthetics.

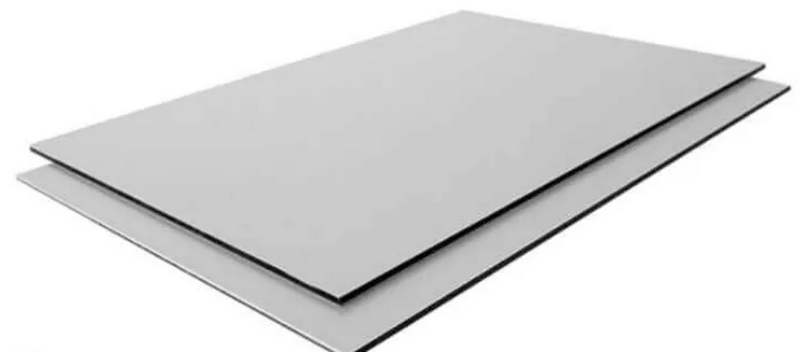

Place the aluminum panels together in their final position. Clamp or hold them firmly to prevent any movement during drilling and riveting. Proper alignment ensures that the rivets join the panels securely without gaps or misalignment.
Select a drill bit that matches the diameter of the rivet shaft. Drill through both panels at the marked points. It is important that the holes are clean and free of burrs to ensure a tight fit for the rivets.
- Drill holes slightly larger than the rivet diameter to allow easy insertion but not so large that the rivet will be loose.
- Deburr the holes on both sides to remove sharp edges.
Insert the solid rivet into the drilled hole, ensuring the rivet head is on the visible or desired side of the panel. The rivet should fit snugly without excessive play.
The bucking bar is placed against the tail end of the rivet (the side opposite the rivet head) to provide a solid backing surface. The hammer or rivet gun is used to deform the tail of the rivet, forming a new head (called the shop head) that holds the panels tightly together.
- The rivet gun or hammer should be held perpendicular to the rivet.
- The bucking bar should be held firmly against the rivet tail to absorb the hammer blows and shape the rivet.
Strike the rivet head with the hammer or use the rivet gun to apply impact force. This action compresses and expands the rivet shaft inside the hole, causing the tail to mushroom out and form a second head.
- Continue hammering until the tail is fully formed and flush with the panel surface.
- Avoid over-hammering, which can damage the rivet or panels.
After setting the rivet, inspect the joint for:
- Proper deformation of the tail forming a smooth, round shop head.
- No gaps or looseness between the panels.
- Rivet heads flush with the panel surface.
A well-set rivet will tightly clamp the aluminum panels together, providing a strong and permanent joint.
- Select the Correct Rivet Size: The rivet length should be about 2.5 times the thickness of the panels combined to ensure enough material for forming the shop head.
- Use the Right Rivet Material: Aluminum rivets are preferred for aluminum panels due to their corrosion resistance and compatible expansion properties.
- Maintain Tool Angles: Keep the rivet gun and bucking bar perpendicular to the rivet to avoid sloping or uneven heads.
- Work in a Well-Lit Area: Good lighting helps ensure proper alignment and quality control.
- Practice on Scrap Material: Before working on your final panels, practice riveting on scrap aluminum to develop technique.
| Head Type | Description | Typical Use |
|---|---|---|
| Flathead | Flat, circular head providing wide bearing surface | Structural joints needing strength |
| Countersunk | Conical underside, sits flush with panel surface | Aerodynamic or flush surfaces |
| Buttonhead | Rounded, low-profile head | Decorative or smooth surface joints |
Installing solid rivets in aluminum panels is a straightforward but precise process that requires proper preparation, the right tools, and careful technique. By following the steps of marking, drilling, inserting, and hammering with a bucking bar, you can create strong, durable joints that withstand stress and environmental conditions. Whether you are working on aircraft, boats, or custom metal projects, mastering solid rivet installation is essential for achieving professional and lasting results.
Choose a rivet whose length is approximately 2.5 times the combined thickness of the panels. The diameter should fit snugly in the drilled hole without excessive play to ensure a secure joint.
While it is possible to install solid rivets alone using specialized rivet guns, having a second person to hold the bucking bar makes the process easier and ensures better results.
A drill with appropriate bits, a rivet gun or hammer, a bucking bar, safety gear, and marking tools are essential. Pneumatic rivet guns can simplify the process but are not mandatory.
Ensure holes are properly drilled and deburred, use the correct rivet size, maintain perpendicular tool angles, and avoid excessive hammering force.
Solid rivets are permanent fasteners and generally not meant to be removed. If removal is necessary, they must be drilled out carefully to avoid damaging the panels.
