Creating a durable and precise aluminum frame for a solar panel is essential for protecting the photovoltaic cells, ensuring structural integrity, and extending the lifespan of the panel. Aluminum is the material of choice due to its light weight, corrosion resistance, strength, and recyclability. This comprehensive guide will walk you through the entire process of making an aluminum solar panel frame, from raw materials to final assembly, including detailed steps, tools, and tips. Visual aids such as images and videos will be referenced throughout to enhance understanding.

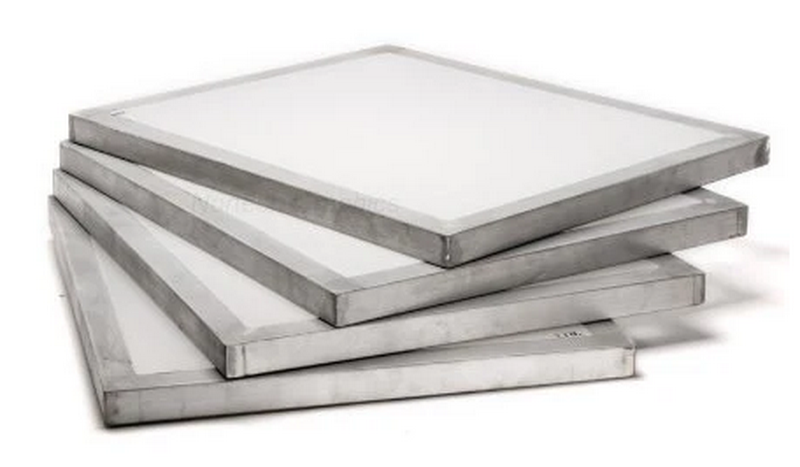

Aluminum solar panel frames serve as the skeleton that holds the solar cells, glass cover, and backing materials together. They provide:
- Structural support and rigidity
- Protection against environmental elements like wind, rain, and dust
- Mounting points for installation systems
- Aesthetic finishing that enhances the panel's appearance
The choice of aluminum alloys, typically from the 6000 series such as 6063 or 6005, ensures high strength, corrosion resistance, and longevity of over 25 years with minimal maintenance[5].
Materials:
- High-quality aluminum extrusions (L-profile, T-profile, U-channel, or H-profile depending on design)
- Solar glass cover
- Photovoltaic cells
- Backsheet material
- Silicone sealant or adhesive
- Rivets or corner connectors
- Protective film for aluminum surface
Tools:
- Measuring tape and marker
- Double-head miter saw (for 45-degree angled cuts)
- Drill with appropriate bits (for holes and mounting points)
- Straightening machine or manual straightening tools
- Sandblasting equipment (optional for surface finishing)
- Anodizing or powder coating setup (for corrosion resistance and aesthetics)
- Solar panel framing machine (optional for automated assembly)
- Clamps and brackets
- Safety gear (gloves, goggles)

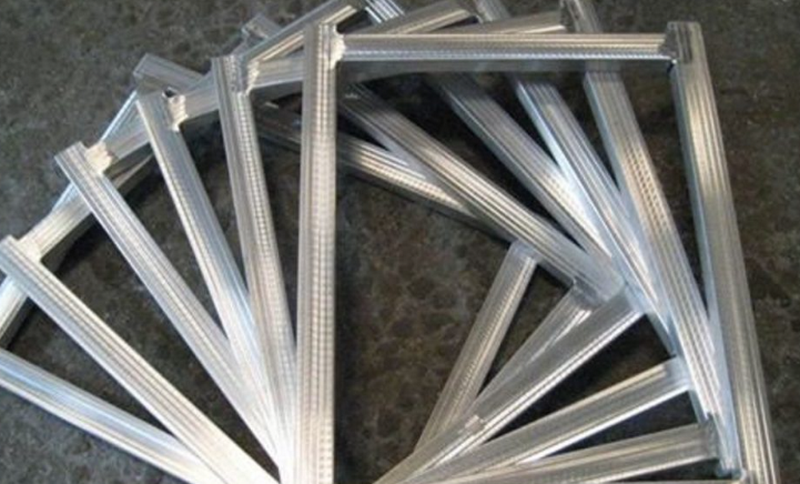

Start by sourcing aluminum extrusions designed for solar panel framing. These profiles are typically produced by extrusion, where aluminum is heated and forced through a die to create specific shapes such as L, T, U, or H profiles[1][3][4].
Preparation steps:
- Inspect the aluminum for defects.
- Clean the surface to remove oxides and impurities.
- Straighten the aluminum profiles to correct any bends or warping from extrusion[3].
Measure the dimensions of your solar panel glass or solar cell array carefully. Mark the aluminum profiles accordingly, allowing a small tolerance (usually around 2 mm) for fitting.
Use a double-head miter saw to cut the profiles at 45-degree angles to create clean, precise corners for the frame[2][3].
To protect the aluminum frame from corrosion and environmental damage, apply a surface treatment:
- Anodizing: Creates a thick oxide layer on the aluminum surface, enhancing corrosion resistance and providing a decorative finish. Black anodizing or natural anodizing are common options[3].
- Powder coating: Electrostatic application of colored powder followed by baking to create a durable, scratch-resistant finish. Powder coating offers color variety but is slightly less scratch-resistant than anodizing[1][5].
After treatment, protect the aluminum surface with a film to prevent scratches during assembly[3].
Drill holes for mounting brackets, grounding points, and water drainage. Use combination molds or templates to ensure consistent hole placement and size[3][5].
Join the cut aluminum profiles by connecting the 45-degree corners. Use rivets or corner connectors to secure the frame firmly. Ensure corners are aligned and tight to prevent loosening over time[3].
Apply a bead of silicone sealant along the inner base of the aluminum frame to create a waterproof seal.
Place the solar glass cover onto the frame carefully, pressing it into the silicone to secure it.
Next, position the solar cells or photovoltaic module inside the frame, ensuring proper alignment and spacing[2][5].
Add the backsheet to the rear of the panel if applicable, securing it to the frame.
Attach mounting brackets or rails to the frame for installation.
Inspect the entire assembly for:
- Proper alignment of glass and frame edges (90-degree angles)
- Absence of scratches, bubbles, or defects in the sealant
- Secure fastening of all components[2][5].
Allow the silicone and adhesives to cure fully (usually 10-12 hours) before handling or installing the panel.
Making an aluminum solar panel frame involves a precise and methodical process that begins with sourcing high-quality aluminum extrusions and ends with assembling a robust, weather-resistant frame that protects and supports the solar cells. The key steps include cutting aluminum profiles to size, applying protective surface treatments like anodizing or powder coating, drilling mounting holes, and assembling the frame corners securely. Proper sealing with silicone ensures the panel is waterproof and durable.
Using aluminum for solar panel frames offers excellent strength-to-weight ratio, corrosion resistance, and longevity, making it the preferred choice in the solar industry. By following this detailed guide, you can build a reliable aluminum solar panel frame that will enhance the performance and lifespan of your solar energy system.
The most commonly used aluminum alloys for solar panel frames are 6063 and 6005 from the 6000 series. They offer a good balance of strength, corrosion resistance, and workability[5].
Anodizing creates a hard, corrosion-resistant oxide layer that is more durable and scratch-resistant than powder coating. It also reflects heat better, which can improve panel efficiency[3][5].
While wood can be used for DIY projects, aluminum is preferred for its durability, weather resistance, and lightweight properties. Wood frames may degrade faster outdoors and require more maintenance[2].
Applying a high-quality silicone sealant along the inner edges of the frame before placing the glass cover creates a waterproof barrier that protects the solar cells and internal components[2].
Typically, silicone sealant requires 10 to 12 hours to cure fully, depending on temperature and humidity. It is important to allow full curing before handling or installing the panel[5].
