Welding aluminum body panels is a specialized skill essential for automotive repair, restoration, and custom fabrication. Aluminum's unique properties-lightweight, corrosion resistance, and strength-make it a preferred material for modern vehicles, but welding it requires careful preparation, technique, and tools. This comprehensive guide will walk you through the entire process of making welded aluminum body panels, from preparation to finishing, including tips, techniques, and visual aids to help you master the craft.

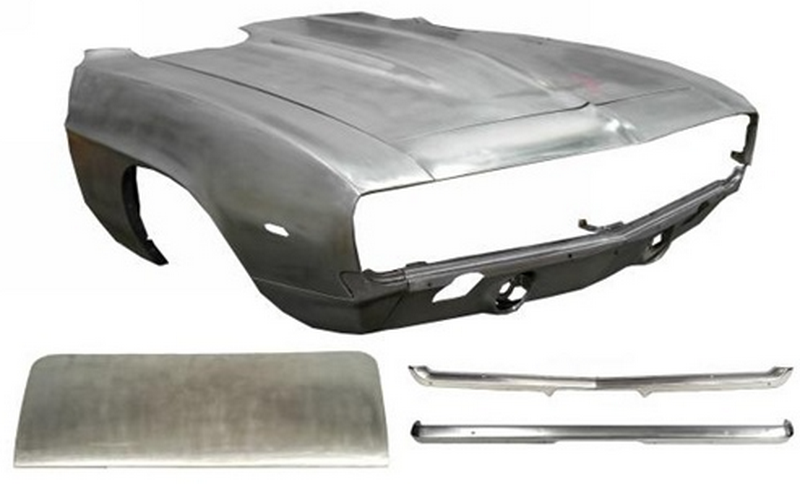

Aluminum body panels are commonly used in cars, trucks, and specialty vehicles for their lightweight and durable characteristics. Unlike steel, aluminum requires different welding methods due to its high thermal conductivity and oxide layer, which can complicate the welding process.
- TIG (Tungsten Inert Gas) welder or MIG welder designed for aluminum
- Aluminum filler rods (e.g., 1100 or 3003 alloy)
- Wire brush (dedicated for aluminum)
- Angle grinder with flap discs
- Hammer and dolly set for panel shaping
- Safety gear: welding helmet, gloves, protective clothing
- Clamps and fixtures to hold panels in place
- Sandpaper and body filler for finishing
Before starting, ensure you wear appropriate safety gear. A welding helmet with the correct shade, welding gloves, and protective clothing are essential to protect from sparks, UV radiation, and heat[1].
Preparation is critical. Clean the aluminum surfaces thoroughly to remove paint, oxidation, dirt, and grease. Use a dedicated aluminum wire brush and a clean cloth. Proper surface preparation ensures strong welds and prevents contamination[1][2].

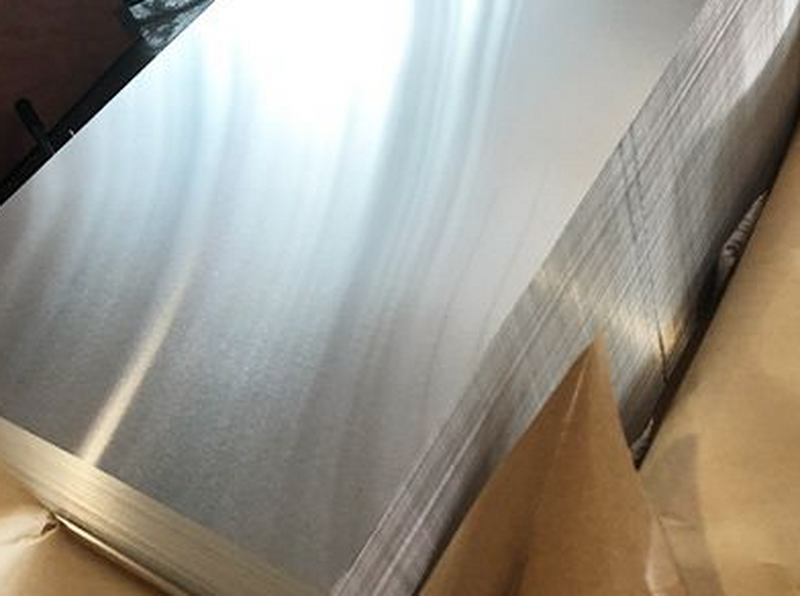

Cut the aluminum sheets to the desired shape using metal shears or a saw with a blade suitable for aluminum. Chamfer the edges slightly to allow proper weld penetration. Fit the panels tightly together, ensuring minimal gaps. Use clamps to hold the panels in place[4][6].
Begin by tack welding the panels at several points to secure alignment. Tack welds are small welds that hold the panels together temporarily. For aluminum, it's important to do multiple small tack welds rather than one large one to minimize heat distortion[1][6].
- Use TIG welding for the best control and clean welds on thin aluminum panels.
- Use a filler rod compatible with the aluminum alloy.
- Weld in short sections (about 50 mm) to control heat input and reduce warping.
- Alternate welding spots to allow cooling between welds.
- Maintain a steady hand and consistent travel speed to avoid burn-through or weak welds[2][3][6].
After welding, allow the welds to cool and then grind them down using an angle grinder with a flap disc. Grind just enough to smooth the welds, leaving some weld material to maintain strength. Avoid grinding too deep, which can weaken the joint[1][6].
Use a hammer and dolly to stretch and smooth the welded panel. This process relieves stresses caused by welding and helps restore the panel's original shape. Work gently and evenly along the weld to avoid creating high or low spots[2][6].
Apply body filler over the welded areas to smooth any imperfections. Once cured, sand the filler to achieve a seamless surface that matches the surrounding panel. This step prepares the panel for painting and finishing[1].
Clean the panel thoroughly, apply primer, and paint as required to match the vehicle's finish. Proper finishing protects the aluminum and enhances the aesthetic appeal[1].
- Use a dedicated aluminum wire brush to avoid contamination.
- Keep the welding area clean and free of oil or grease.
- Use the correct welding polarity (usually AC for TIG welding aluminum).
- Practice welding on scrap aluminum to perfect your technique.
- Use clamps and fixtures to prevent panel movement during welding.
- Avoid welding near edges or corners to reduce heat distortion.
- Use intermittent welds or stitch welding to control heat buildup.
Making welded aluminum body panels is a challenging but rewarding process that requires careful preparation, the right tools, and practiced technique. By following the steps of cleaning, fitting, tack welding, welding in short sections, grinding, and finishing, you can achieve strong, smooth, and visually appealing aluminum panels suitable for automotive restoration or custom builds. Mastery of welding aluminum body panels not only enhances your fabrication skills but also allows you to work with a lightweight, corrosion-resistant material that is increasingly important in modern vehicle construction.
TIG welding is generally preferred for aluminum body panels due to its precise control and clean welds, especially on thin sheets. MIG welding can also be used but requires proper equipment and technique.
Weld in short sections, alternate weld spots, use tack welds, and allow cooling between welds. Using clamps and fixtures to hold panels steady also helps minimize distortion.
Yes, aluminum can be brazed using a propane torch and aluminum brazing rods, but this method is less strong and less common for structural body panels.
Use filler rods compatible with the base aluminum alloy, such as 1100 or 3003 alloy rods for common automotive aluminum panels.
After welding and grinding, apply body filler to smooth imperfections, sand it down, then clean, prime, and paint the panel to match the vehicle.
