Painting aluminum auto body panels requires a careful approach different from painting steel panels due to aluminum's unique properties. Aluminum is lightweight, prone to oxidation, and can be sensitive to heat and harsh treatments, so proper preparation and painting techniques are essential to achieve a durable, smooth, and attractive finish. This comprehensive guide will walk you through the entire process, from preparation to finishing, with detailed steps, tips, and multimedia resources to help you master how to paint aluminum auto body panels effectively.

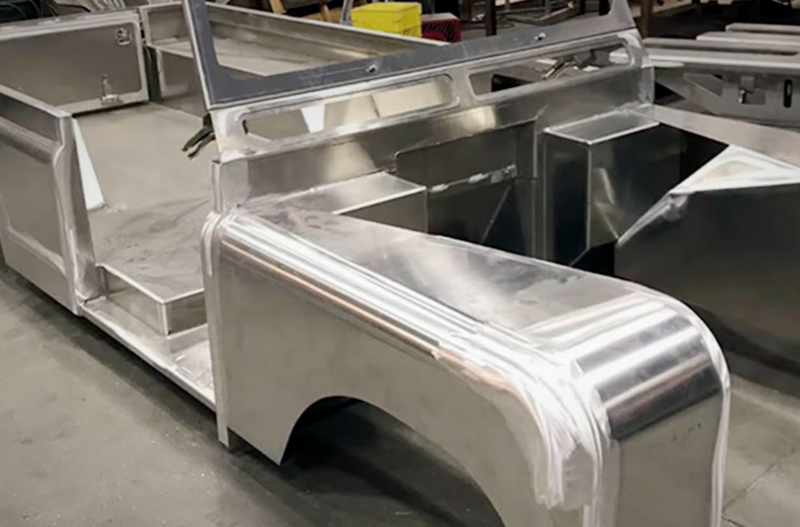

Aluminum panels are increasingly common in automotive manufacturing due to their light weight and corrosion resistance. However, aluminum's surface chemistry means that paint adhesion can be challenging without proper surface preparation. Unlike steel, aluminum forms a natural oxide layer that can prevent paint from sticking well if not treated correctly.
Preparation is the most critical phase when painting aluminum panels. Proper cleaning, sanding, and priming ensure paint adheres well and resists peeling or corrosion.
- Begin by washing the aluminum panel thoroughly with warm water and a mild detergent to remove dirt, grease, and oils.
- For stubborn grime or oxidation, use a specialized aluminum cleaner or a vinegar-water solution (1:1 ratio) to remove oxidation.
- Rinse thoroughly with clean water and allow the panel to dry completely.
- Use fine-grit sandpaper (180 to 400 grit) to scuff the surface evenly. This roughens the surface, allowing the primer and paint to bond better.
- Sand in the direction of the metal grain to avoid deep scratches.
- Pay special attention to edges and corners, using tools like emery boards or small sanding blocks for tight spots.
- After sanding, wipe the panel with a damp cloth to remove all dust and debris.

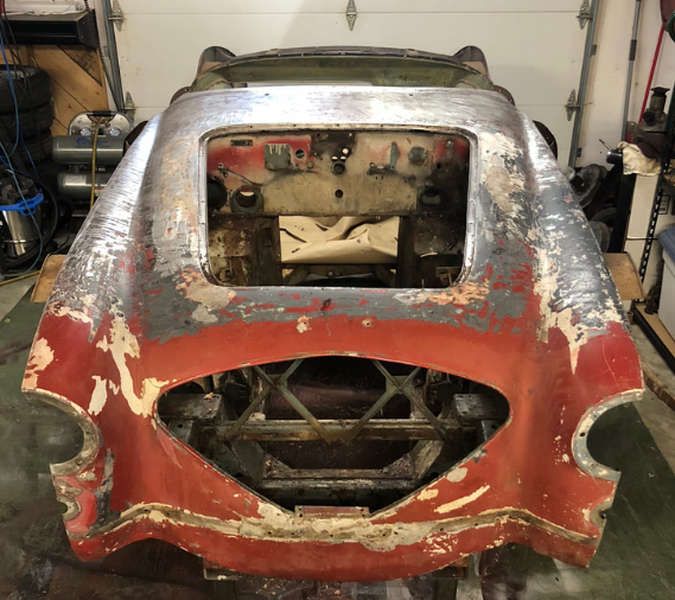

- For panels with old paint or corrosion, chemical paint strippers designed for aluminum or gentle hand sanding can be used.
- Avoid abrasive blasting or aggressive sanding that can distort the aluminum panel.
- Use scrapers and wire brushes carefully to remove residues without damaging the metal.
Priming aluminum is essential to prevent oxidation and promote paint adhesion.
- Use a self-etching primer specifically formulated for aluminum and metal surfaces. This primer chemically bonds to aluminum and creates a corrosion-resistant base.
- Alternatively, an epoxy primer can be used for enhanced corrosion protection and adhesion.
- Apply the primer in thin, even coats using a spray gun or aerosol can.
- Allow each coat to dry fully according to the manufacturer's instructions.
- After the primer dries, lightly sand with 400-grit sandpaper to smooth the surface.
- Wipe the surface clean before applying additional coats or moving on to paint.
- If the aluminum panel has dents, scratches, or surface irregularities, apply a high-build polyester primer or body filler designed for metal.
- For light damage, typical polyester fillers work well over epoxy primer.
- For deeper dents, use a glass-reinforced filler for better strength.
- Allow fillers to cure fully, then sand smooth with 400-grit sandpaper.
- Use automotive-grade paints compatible with aluminum, such as acrylic urethane, epoxy, or oil-based paints.
- Select a base coat and clear coat system for a durable and glossy finish.
- For simpler applications, single-stage paints can be used.
- Mix the paint according to manufacturer instructions.
- Apply several thin coats rather than one thick coat to avoid runs and ensure even coverage.
- Allow adequate drying time between coats.
- Use a spray gun for the most professional finish; alternatively, spray cans or paint rollers (foam or short nap rollers) can be used for larger flat areas.
- Hold the spray can or gun about 10-12 inches from the surface, using steady, sweeping motions.
- After the base coat dries, apply a clear coat to protect the paint and add shine.
- Use thin, even coats of clear coat.
- Allow the clear coat to cure fully, which may take several days depending on conditions.
- Allow the painted panel to cure in a dust-free, well-ventilated area.
- Avoid exposing the panel to moisture or extreme temperatures during curing.
- After curing, inspect for imperfections such as runs, dust nibs, or orange peel.
- Use wet sanding with fine-grit sandpaper (1000-2000 grit) and polishing compounds to achieve a smooth, glossy finish.
- Buff the panel with a polishing pad for a showroom shine.
- Temperature and Humidity: Paint aluminum in temperatures above 50°F (10°C) to ensure proper drying and curing.
- Safety: Always wear protective gear such as masks, gloves, and goggles when sanding and painting.
- Avoid Overheating: Aluminum can warp if exposed to excessive heat during sanding or curing.
- Regular Maintenance: Painted aluminum panels benefit from regular washing and waxing to maintain the finish.
Learning how to paint aluminum auto body panels involves meticulous surface preparation, using the right primers and paints, and applying thin, even coats with patience. Aluminum's unique properties require special attention to cleaning, sanding, and priming to ensure paint adhesion and durability. Following the steps outlined-from cleaning and sanding to priming, painting, and finishing-will help you achieve a professional-quality finish that resists corrosion and looks great for years. Whether you are restoring classic aluminum panels or upgrading modern ones, this guide equips you with the knowledge and techniques to paint aluminum auto body panels successfully.
Proper cleaning, sanding with fine-grit sandpaper, and applying a self-etching or epoxy primer are essential steps to promote adhesion and prevent peeling.
No, sanding is necessary to roughen the surface and remove oxidation, which helps the primer and paint bond properly.
Use a self-etching primer specifically designed for aluminum or an epoxy primer for corrosion resistance and adhesion.
Yes, but painting anodized aluminum may alter its appearance and reduce the anodized finish's lifespan. Proper surface prep is still required.
Painting in cold weather is possible but challenging. Use cold-weather paint, keep paint warm before use, and warm the aluminum surface to ensure proper drying and adhesion.
