English
Content Menu
● Understanding Aluminum Panel Beating
● Tools Required for Panel Beating Aluminum
● Step-by-Step Guide: How To Panel Beat Aluminum?
>> 3. Annealing Aluminum Panels
>> 4. Hammer and Dolly Technique
>> 5. Heat Shrinking High Spots
>> 6. Dent Pulling Using Pins and Slide Hammers
● Tips and Best Practices for Aluminum Panel Beating
>> 1. What is the best way to anneal aluminum for panel beating?
>> 2. Can I use steel panel beating tools on aluminum?
>> 3. How do I prevent aluminum panels from cracking during repair?
>> 4. What type of filler and primer should be used on aluminum panels?
>> 5. Is it necessary to weld pins for dent pulling on aluminum?
Panel beating aluminum is a specialized skill that requires understanding the unique properties of aluminum compared to steel. Aluminum is lighter, softer, and more prone to work hardening and cracking, which means traditional steel panel beating techniques need to be adapted. This comprehensive guide will walk you through the entire process of panel beating aluminum, including preparation, tools, techniques, heating, shrinking, and finishing. Alongside detailed explanations, you will find references to helpful videos and images to visualize key steps.
Aluminum behaves differently from steel when it comes to shaping and repairing. It work-hardens quickly, meaning it becomes brittle if hammered too much without annealing (softening by heating). It also requires careful temperature control during heating to avoid warping or cracking. Unlike steel, aluminum panels often need to be heated during repair to regain flexibility.
Successful aluminum panel beating depends heavily on using the right tools:
- Panel Beating Hammers: Specialized hammers with flat, pick-up, and spoon faces for different dent types. Aluminum hammers are often softer to avoid marking the panel.
- Dollies: Solid metal supports placed behind the panel during hammering. Various shapes like heel, spoon, and corner dollies help match panel contours.
- Heat Source: A gas torch with a neutral flame is commonly used to anneal aluminum panels carefully.
- Slappers and Mallets: Soft-faced mallets and slappers help shape without damaging the surface.
- Pulling Tools: Slide hammers and dent pullers designed for aluminum to remove dents without excessive hammering.
- Temperature Measurement: Infrared thermometers or temperature crayons to monitor heating and avoid overheating.
- Welding Equipment: MIG welding with aluminum wire for pin welding during dent pulling.
- Finishing Tools: Sanders, grinders, and polishing wheels for smoothing and finishing.

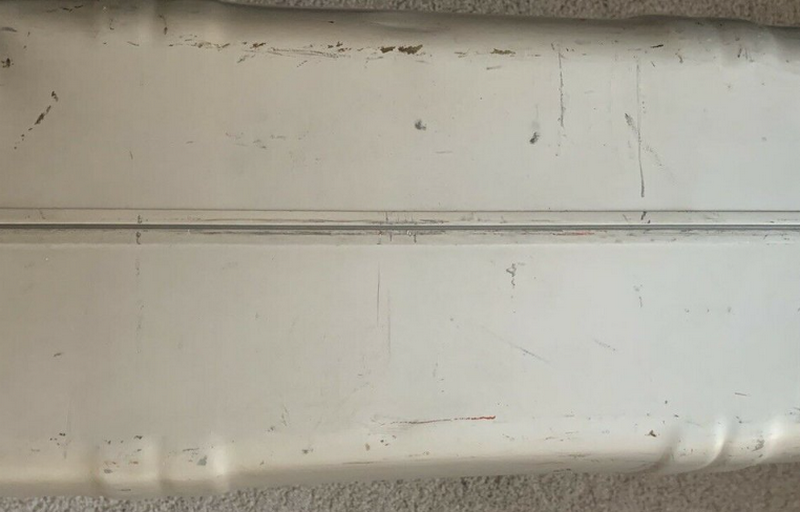

Begin by carefully inspecting the aluminum panel for dents, creases, and cracks. Mark the high and low spots using a marker or chalk. Understanding the damage extent helps plan the repair approach.
Remove paint and dirt from the damaged area using a wax and grease remover. This ensures better visibility and prevents contamination during heating and welding.
Because aluminum work-hardens quickly, annealing is essential to soften the metal before and during panel beating.
- Use a gas torch with a neutral flame to heat the damaged area evenly.
- Heat until the surface reaches approximately 220-225°C (428-437°F), which is hot enough to anneal without damaging the paint or metal.
- You can test annealing by heating until a bar of soap melts on the panel surface, indicating sufficient heat.
- Allow the panel to cool naturally after heating.

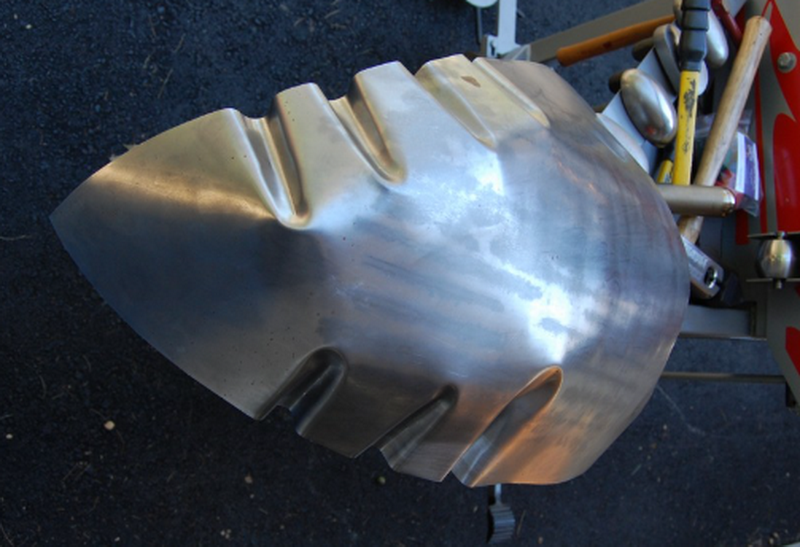

- Place the appropriate dolly behind the dent to support the metal.
- Use a panel beating hammer to gently tap the dent from the front, working around the edges to push the metal back into shape.
- Use glancing blows rather than straight hammering to avoid stretching or warping.
- Continue working the panel, alternating between hammering and dolly support, until the dent is minimized.
If the panel shows high spots or oil canning (panel flex), heat shrinking can restore the shape.
- Heat the high spot area with a torch until it is warm but not red hot.
- Use a slapper or wooden mallet to tap the heated area lightly, causing the metal to contract and shrink.
- Repeat heating and tapping in small sections to evenly shrink the panel.
- Monitor the temperature carefully to avoid overheating.
For deeper dents, welding pins to the panel and pulling them out is effective.
- Heat the dent area lightly to anneal.
- Weld small pins onto the dented surface.
- Attach a slide hammer or pulling lever to the pins.
- Carefully pull the dent out, checking progress frequently.
- Remove pins by grinding or cutting after pulling.
- After reshaping, minor imperfections can be filled with aluminum-compatible body filler.
- Sand the area smooth with progressively finer grit sandpaper.
- Finish with primer and paint as needed.
- Work in small sections: Aluminum reacts quickly to heat and hammering; working in small areas prevents warping.
- Use temperature control: Avoid overheating which can cause warping or paint damage.
- Avoid excessive hammering: Aluminum work-hardens and cracks if hammered too much without annealing.
- Use appropriate fillers and primers: Aluminum requires special epoxy primers and fillers compatible with its properties.
- Practice patience: Aluminum panel beating requires more finesse than steel.
How to panel beat aluminum requires a blend of traditional metalworking skills and specific techniques tailored to aluminum's unique characteristics. Proper annealing through controlled heating, using specialized tools like aluminum hammers and dollies, and employing heat shrinking and pulling methods are essential to achieve quality repairs. Patience, temperature control, and the right equipment ensure that aluminum panels can be restored effectively without damage. With practice and attention to detail, panel beating aluminum can yield professional and durable results.
The best way to anneal aluminum is by heating the damaged area evenly with a neutral flame torch until it reaches about 220-225°C (428-437°F), which softens the metal without causing paint damage. Testing with a bar of soap melting on the surface can indicate proper temperature.
While some steel panel beating tools can be used, it is better to use tools specifically designed or softened for aluminum to avoid marking or damaging the softer metal surface.
Prevent cracking by annealing frequently to soften the metal, working gently with glancing hammer blows, avoiding excessive stretching, and controlling temperature carefully during heating.
Use aluminum-compatible epoxy primers and body fillers designed for non-ferrous metals to ensure good adhesion and corrosion resistance.
Welding pins is a common and effective method for pulling dents on aluminum panels, especially for deeper damage, but it requires skill and proper equipment to avoid further damage.
