Aluminum honeycomb panels are widely valued for their exceptional strength-to-weight ratio, corrosion resistance, and thermal stability, making them ideal for aerospace, automotive, construction, and industrial applications. However, machining these panels presents unique challenges due to their cellular structure and delicate core. This comprehensive guide will explain how to machine aluminum honeycomb panels effectively, covering preparation, tooling, machining techniques, and finishing, supported by visual aids and videos to enhance understanding.

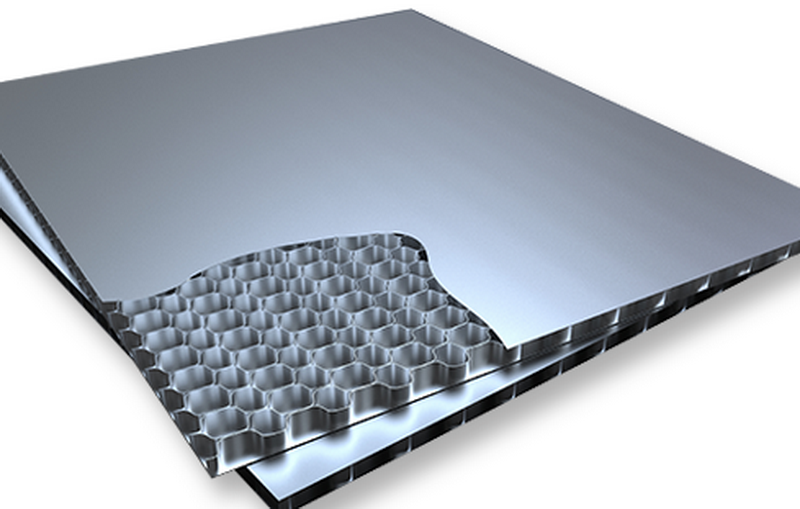

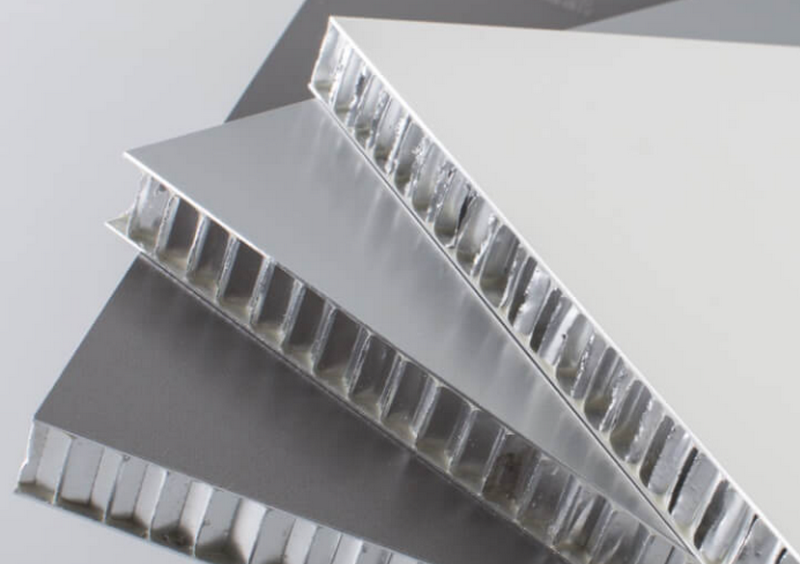

Aluminum honeycomb panels consist of a core made from thin aluminum foil sheets bonded in a hexagonal honeycomb pattern, sandwiched between two aluminum face sheets. This structure provides high stiffness and strength while remaining lightweight. The core thickness and cell size vary depending on the application, with typical panel thicknesses ranging from 6mm to 25mm or more.
The panels' unique properties include:
- High strength-to-weight ratio
- Excellent corrosion resistance
- Non-moisture absorbent
- Thermal stability and fire resistance
- High flatness and dimensional stability
These qualities make aluminum honeycomb panels ideal for aerospace substructures, architectural cladding, transportation components, and more.
Before machining, thorough preparation is essential to ensure precision and avoid damage to the delicate honeycomb core.
Create detailed CAD drawings of the panel and the machining operations. Use software to convert hand sketches into precise AutoCAD files, incorporating panel numbering and component identification for easy tracking during machining.
Confirm the aluminum alloy grade, typically 3003 series for panels and core foil, known for corrosion resistance and good machinability. Inspect panels for flatness and integrity before machining.
Use stable, vibration-free fixtures to hold the panel securely. Due to the weak in-plane rigidity of the honeycomb core, improper clamping can cause deformation or damage during cutting. Specialized fixtures or vacuum tables are recommended.
Choosing the right tools is critical for clean cuts and avoiding delamination or core damage.
Recommended Tools Include:
- Polycrystalline Diamond (PCD) tipped cutters: For clean, precise cuts with long tool life.
- Solid carbide end mills: For profiling and pocketing operations.
- Specialized composite panel tools (e.g., PANEL CUT): Designed to drill and profile sandwich panels without delamination or flagging.
- 5-axis CNC machines: Allow complex, multi-directional machining with high precision.
- High-feed-rate tools: To reduce machining time while maintaining surface quality.
The machining process involves several steps tailored to the panel's structure and desired outcome.
Start by face milling the panel surface to achieve a flat, smooth finish. Use a 5-axis CNC machine with a face mill cutter to profile the panel edges and contours. This step ensures dimensional accuracy and prepares the panel for further machining.
Video Example:
demonstrates 5-axis machining of aluminum honeycomb panels with a moving-table CNC machine.
To machine internal cavities or pockets, use a combination of drills and end mills. Begin with a flat-bottom drill to remove bulk material from the honeycomb core, followed by smaller mills to clean corners and refine the pocket walls.
Key Points:
- Leave a small lip around pockets to maintain structural integrity.
- Use helical milling passes to reduce tool load and prevent core damage.
- Deburring and chamfering are essential to remove sharp edges and prevent delamination.
Video Example:
shows detailed milling and finishing steps for honeycomb structures.
Use specialized PANEL CUT tools to drill through the sandwich panel without delamination or core flagging. These tools allow high feed rates and produce clean holes, essential for fasteners or assembly.
For applications requiring undercuts or edge profiling, use DECORING CUT tools designed to plunge and undercut skins cleanly. These tools minimize material compression and spring-back, ensuring tight bonding surfaces.
Machining aluminum honeycomb panels involves addressing several challenges:
- Core Delamination: Use sharp, specialized tools and stable fixturing to prevent core separation.
- Material Build-up: Aluminum can form gummy deposits on tools; maintain proper cooling and tool speeds.
- Vibration and Panel Movement: Secure panels firmly to avoid vibration that affects cut quality.
- Tool Wear: Use PCD tools and maintain sharpness to extend tool life and ensure clean cuts.
After machining, panels may require:
- Deburring: Remove burrs from edges and holes to prevent damage during assembly.
- Surface Treatment: Anodizing, fluorocarbon coating, or painting for corrosion resistance and aesthetics.
- Quality Inspection: Check dimensional tolerances, flatness, and bonding integrity.
Machining aluminum honeycomb panels requires a specialized approach that respects the unique structure and properties of the material. By carefully preparing the panels, selecting appropriate tools like PCD cutters and PANEL CUT drills, and employing advanced 5-axis CNC machining techniques, manufacturers can achieve precise, clean cuts without damaging the core or skins. Overcoming challenges such as vibration, tool wear, and delamination is essential for producing high-quality components used in aerospace, automotive, construction, and other industries. Post-machining processes like deburring and surface finishing further enhance the panel's performance and durability. With the right expertise and equipment, aluminum honeycomb panels can be machined efficiently and to exacting standards.
Aluminum honeycomb panels are difficult to machine because the honeycomb core has weak in-plane rigidity, making it prone to deformation and damage during cutting. The cellular structure requires precise tooling and stable fixturing to avoid delamination and core damage.
5-axis CNC machines are best suited because they allow multi-directional machining with high precision, essential for complex shapes and delicate honeycomb structures.
Polycrystalline diamond (PCD) tipped cutters, solid carbide end mills, and specialized PANEL CUT tools are recommended for clean cuts and extended tool life.
Use sharp, specialized tools designed for composite panels, maintain proper feed rates and speeds, and ensure the panel is securely clamped to minimize vibration.
Deburring to remove sharp edges, surface treatments like anodizing or coating for corrosion resistance, and quality inspections to ensure dimensional accuracy and bonding integrity.
