Preparing your home for hurricane season involves installing aluminum hurricane panels, a crucial step for protecting windows and doors from severe weather damage. Accurate measurement is essential to ensure these panels fit perfectly, providing maximum protection and ease of installation. This comprehensive guide will walk you through the entire process of measuring for aluminum hurricane panels, including tips, tools, and techniques to get it right the first time.
- Tape measure (preferably steel for accuracy)
- Ladder (for higher windows)
- Notebook and pencil or a digital device for recording measurements
- Camera or smartphone (optional, for photos)
- Safety gloves (for handling panels)
Before measuring, identify all the openings you need to protect. This includes:
- Windows (all types and sizes)
- Doors (entry, patio, garage)
- Vents and skylights (if applicable)
Create a simple site map or diagram of your home's exterior, marking each opening with a number or label to keep track of measurements.
- Stand outside your home.
- Place the end of the tape measure on the outside edge of the opening's frame on one side.
- Extend the tape measure straight across to the outside edge of the opposite side.
- Record this measurement as the width.
- Round to the nearest inch if necessary.
- Place the tape measure at the top outside edge of the opening.
- Extend it vertically down to the bottom outside edge (window sill or door threshold).
- Record this measurement as the height.
- Round to the nearest inch if necessary.
For aluminum hurricane panels, it's recommended to add an additional 2 inches to the height measurement to allow for proper mounting and overlap with tracks or mounting hardware[1]. Similarly, ensure the width measurement accounts for panel overlap, typically panels cover 12 inches each and overlap every 6 inches at the mounting keyholes[3].

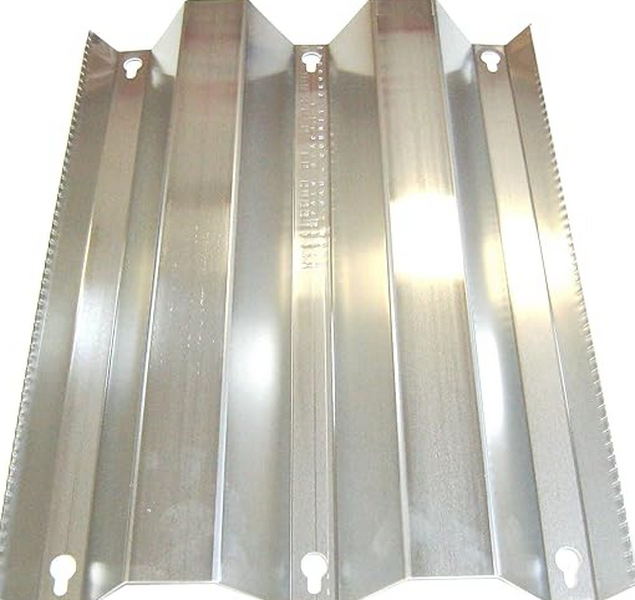

Each aluminum hurricane panel typically covers 12 inches in width. Panels are designed with keyholes spaced 6 inches apart for mounting, allowing panels to overlap for half coverage. For example, one full panel covers 12 inches, but when overlapped with another panel by 6 inches, the combined coverage is 18 inches[1][3].
Use the following formula to calculate the number of panels:
Number of Panels=(Total Width of Opening+Overlap)/12inches
Round up to ensure full coverage.

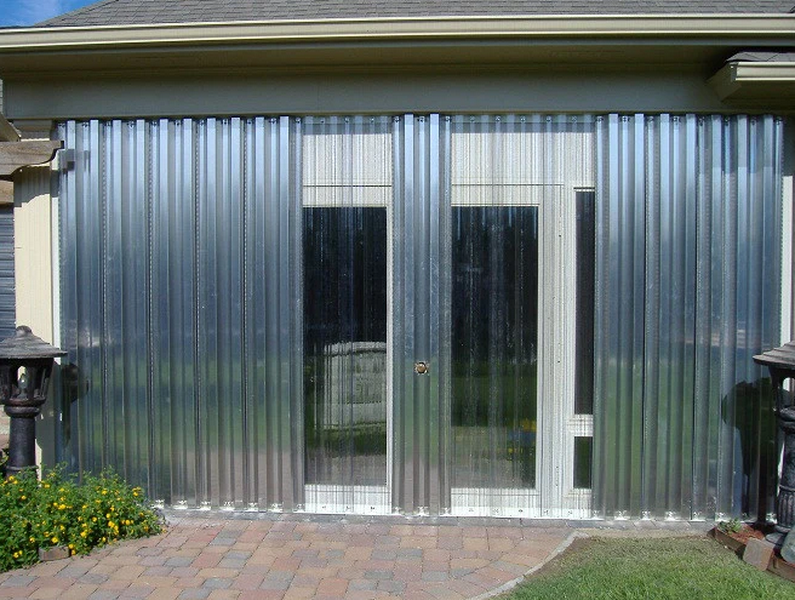

Doors require similar measurement techniques:
- Measure horizontally from one inside edge of the door opening to the opposite edge.
- Measure vertically from the inside top edge of the door opening to the floor.
- Add overlap allowances as recommended by your panel supplier[6].

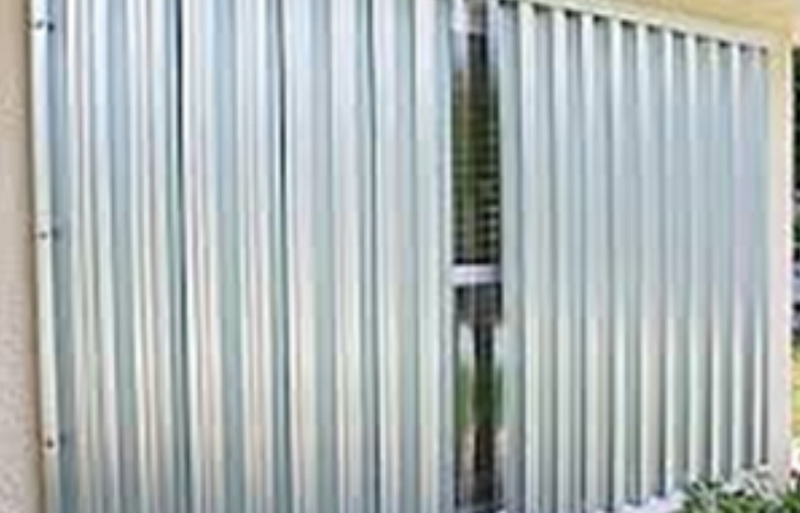

- Aluminum hurricane panels typically mount using tracks or direct mounting hardware.
- Tracks are usually 2 inches wide and are installed vertically on each side of the opening.
- Ensure your measurements allow for the panel's 2-inch profile to fit into the track.
- If mounting directly to concrete block walls (CBS), use appropriate anchors and screws with keyhole washers for secure installation[3].
- Write down all measurements clearly.
- Label each measurement with the corresponding opening number from your site map.
- Double-check all measurements for accuracy.
- Take photos of each opening if possible for reference.
- Use your measurements to order panels.
- Many suppliers allow you to enter measurements online and will add necessary overlaps automatically.
- Confirm the number of panels and mounting hardware needed.
- Ask for Miami-Dade County or local building code approval if required[3][8].
- Always measure from the outside of the opening.
- Use a steel tape measure for precision.
- Measure twice to avoid errors.
- Add recommended overlap for mounting.
- Label each measurement clearly.
- Wear safety gloves when handling panels.
- Practice installation before storm season to familiarize yourself with the process.
- Measuring from the inside instead of outside.
- Forgetting to add overlap allowances.
- Not accounting for the panel profile and mounting track width.
- Mixing up width and height measurements.
- Ignoring local building codes and approval requirements.
Measuring for aluminum hurricane panels is a critical step in protecting your home from hurricane damage. By following the detailed steps outlined above-measuring width and height from the outside, adding necessary overlap, calculating panel quantity, and considering mounting hardware-you ensure your panels fit perfectly and provide maximum protection. Using proper tools, double-checking your measurements, and referring to visual guides or tutorials will make the process straightforward and stress-free. Preparing early and accurately measuring your openings will help you safeguard your home efficiently when hurricane season arrives.
Measure the width and height from the outside edges of the window or door opening. Width is measured horizontally, and height is measured vertically. Add at least 2 inches to the height for overlap and mounting allowance[1][9].
Since each panel covers 12 inches, divide 48 by 12, which equals 4 panels. However, because panels overlap every 6 inches, you may need to order an extra half panel for proper coverage, totaling approximately 4.5 panels[1][3].
Yes, panels can be directly mounted to walls using appropriate anchors, screws, and keyhole washers designed for secure fastening to concrete or wood surfaces[3].
Wear safety gloves to protect your hands from sharp panel edges. Use a sturdy ladder for high windows and always have a second person assist if possible. Practice installation before storm season to avoid mistakes under pressure[3][5].
Quality aluminum hurricane panels are manufactured to meet or exceed local building codes, including Miami-Dade County and Florida Building Code requirements. Always verify with your supplier that panels are certified for your area[3][8].
