What are the lightweight and sturdy materials used in aviation manufacturing?

Views: 284     Author: julong     Publish Time: 2024-04-08      Origin: Julong Manufacturer


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
What are the lightweight and sturdy materials used in aviation manufacturing?

In the realm of aviation engineering and manufacturing, the pursuit of lightweight yet robust materials is paramount. Aluminium round core aviation panels and three-dimensional aluminum core aviation panels represent two innovative solutions that have gained traction in the industry. In this comprehensive article, we will delve into the intricacies of these panels, exploring their composition, properties, applications, and the advancements they offer to the aviation sector.

Understanding Aluminium Round Core Aviation Panels

Aluminium round core aviation panels, also known as honeycomb panels, are structured with a core made of hexagonal cells or round cells, sandwiched between two layers of aluminum sheets. This design provides exceptional strength-to-weight ratio, making them ideal for aerospace applications where weight reduction is critical.

The core of aluminium round core aviation panels typically consists of lightweight materials such as aluminum, Nomex, or aramid fibers. The choice of core material depends on the specific requirements of the application, including desired strength, stiffness, and weight.


  1. Lightweight: Aluminium round core aviation panels are renowned for their lightweight nature, making them an attractive choice for aircraft structures, interiors, and components.

  2. High Strength: Despite their low weight, these panels offer remarkable strength and rigidity, providing structural integrity and support in demanding aerospace environments.

  3. Stiffness: The honeycomb structure of the core enhances the panels' stiffness, allowing them to withstand bending and torsional forces encountered during flight.

  4. Impact Resistance: The inherent resilience of aluminium and the cushioning effect of the honeycomb core contribute to the panels' ability to absorb impact energy, enhancing safety in the event of a collision or sudden jolt.

  5. Thermal Stability: Aluminium round core aviation panels exhibit excellent thermal stability, maintaining their structural integrity over a wide range of temperatures typically encountered in aviation operations.

  6. three-dimensional-aluminum-core-aviation-panel


Aluminium round core aviation panels find versatile applications across various segments of the aerospace industry, including:

  • Aircraft Interiors: These panels are used for cabin walls, ceilings, floors, galleys, and lavatories, providing lightweight and durable surfaces that meet stringent safety and performance standards.

  • Exterior Structures: In aircraft exteriors, honeycomb panels are utilized for wing surfaces, control surfaces, fairings, and fuselage sections, where weight reduction is crucial without compromising strength and aerodynamics.

  • Structural Components: They are employed in the construction of structural components such as bulkheads, spars, ribs, and frames, contributing to the overall strength and integrity of the aircraft.

Exploring Three-Dimensional Aluminum Core Aviation Panels

Three-dimensional aluminum core aviation panels represent a significant advancement in aerospace materials technology. Unlike traditional honeycomb panels, which have a flat core structure, three-dimensional panels feature a complex, geometrically optimized core design that enhances their mechanical properties and performance.


The core of three-dimensional aluminum core aviation panels is characterized by its intricate geometric configuration, which may include a combination of pyramidal, truss, or lattice structures. This three-dimensional design maximizes strength and stiffness while minimizing weight, resulting in a highly efficient material for aerospace applications.


  1. Optimized Strength-to-Weight Ratio: The geometrically optimized core structure of three-dimensional panels enhances their strength-to-weight ratio, surpassing that of conventional honeycomb panels.

  2. Enhanced Load-Bearing Capacity: The three-dimensional core design distributes loads more effectively, allowing the panels to withstand higher mechanical loads and stresses without deformation or failure.

  3. Improved Fatigue Resistance: The geometric complexity of the core mitigates stress concentrations and fatigue crack propagation, enhancing the panels' durability and longevity under cyclic loading conditions.

  4. Customizability: Manufacturers can tailor the design of three-dimensional aluminum core aviation panels to meet specific performance requirements, optimizing the panel geometry, cell size, and material properties for each application.

  5. Thermal and Acoustic Insulation: The three-dimensional core structure provides inherent thermal and acoustic insulation properties, reducing heat transfer and noise transmission within the aircraft cabin.


Three-dimensional aluminum core aviation panels offer a wide range of applications across the aerospace industry, including:

  • Primary Structures: These panels are used in critical structural components such as wing spars, fuselage frames, and empennage structures, where strength, stiffness, and weight savings are paramount.

  • Secondary Structures: They find application in secondary structures like interior partitions, cargo containers, and access panels, providing lightweight, yet robust solutions for non-critical components.

  • Advanced Composites: Three-dimensional panels can serve as the foundation for advanced composite materials, allowing for the integration of additional layers of carbon fiber, fiberglass, or resin to further enhance performance and functionality.

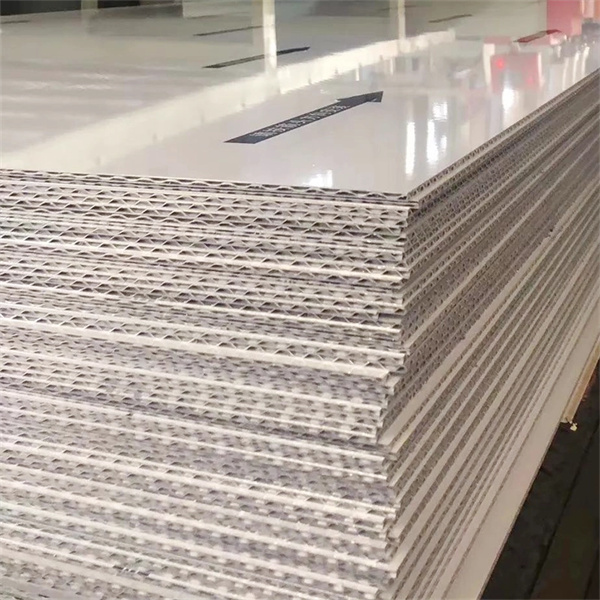

    3D aluminum core aviation panel

Advancements in Aerospace Materials

The development of aluminium round core aviation panels and three-dimensional aluminum core aviation panels represents significant advancements in aerospace materials technology. These innovative solutions offer unprecedented levels of strength, stiffness, and lightweight construction, revolutionizing the design and manufacturing of aircraft structures and components.

As the aerospace industry continues to evolve, materials engineers and manufacturers are constantly striving to push the boundaries of innovation, exploring new materials, processes, and design concepts to meet the demands of modern aviation. Aluminium round core and three-dimensional aluminum core aviation panels stand as testament to the relentless pursuit of excellence in aerospace materials engineering, paving the way for safer, more efficient, and more sustainable air travel in the future.
