Stamped Sheet Metal Panels Comprehensive Guide

In the realm of industrial manufacturing and construction, sheet metal is a versatile and indispensable material. Its adaptability, durability, and cost-effectiveness make it a popular choice for a wide range of applications. One particular method of shaping sheet metal into desired forms is through stamping, which involves the use of dies to deform metal sheets into specific shapes and sizes. In this article, we will delve into the world of stamped sheet metal panels, exploring their uses, manufacturing process, advantages, and more.

1. Introduction to Stamped Sheet Metal Panels:

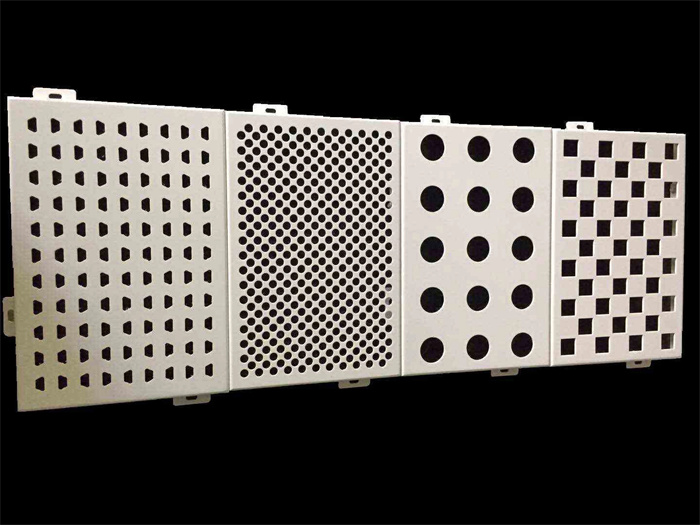

Stamped sheet metal panels are precisely formed components created through the stamping process. These panels can vary in size, thickness, and complexity, depending on the intended application. They find extensive use across various industries, including automotive, aerospace, construction, electronics, and appliances.

2. Manufacturing Process:

The manufacturing of stamped sheet metal panels involves several key steps:

a. Design and Tooling: The process begins with the design of the panel and the corresponding stamping die. The die is typically made from hardened steel and contains the negative impression of the desired panel shape.

b. Material Selection: The choice of sheet metal material depends on factors such as desired strength, corrosion resistance, and formability. Common materials include steel, aluminum, stainless steel, and copper.

c. Material Preparation: The selected sheet metal is then cut into appropriately sized blanks, ready for the stamping process.

d. Stamping: The blanks are fed into a stamping press equipped with the die set. The press applies immense force to deform the metal, forcing it into the shape of the die cavity. This process may involve multiple stages and operations to achieve the desired form.

e. Finishing: Once stamped, the panels may undergo additional processes such as trimming, deburring, surface treatment, and coating to improve their aesthetics and functionality.

3. Advantages of Stamped Sheet Metal Panels:

Stamped sheet metal panels offer several advantages over alternative manufacturing methods:

a. Cost-Effectiveness: Stamping allows for high-speed production of complex shapes, resulting in lower per-unit costs compared to machining or casting.

b. Precision and Consistency: The use of dies ensures precise replication of panel shapes, leading to consistent quality and dimensional accuracy across large production runs.

c. Strength and Durability: Sheet metal panels stamped from high-quality materials exhibit excellent strength-to-weight ratios and resistance to wear, corrosion, and environmental factors.

d. Versatility: Stamped sheet metal panels can be produced in a wide range of shapes, sizes, and thicknesses to suit diverse applications.

e. Integration: Stamped panels often feature integrated features such as flanges, holes, and embossments, eliminating the need for additional assembly steps.


4. Applications:

Stamped sheet metal panels find applications in various industries and products, including:

a. Automotive Components: Body panels, chassis components, brackets, and structural reinforcements.

b. Electronics: Enclosures, housings, heat sinks, and mounting brackets for electronic devices.

c. Appliances: Panels for ovens, refrigerators, washing machines, and HVAC systems.

d. Aerospace: Aircraft fuselage panels, interior components, and structural reinforcements.

e. Construction: Architectural facades, roofing panels, cladding, and decorative elements.

5. Future Trends and Innovations:

The field of stamped sheet metal panels continues to evolve with advancements in materials, technology, and manufacturing processes. Some notable trends and innovations include:

a. Lightweighting: Increasing demand for lightweight materials to improve fuel efficiency in automotive and aerospace applications.

b. Advanced Materials: Adoption of advanced alloys and composites to enhance performance and durability.

c. Automation: Integration of robotics and automation to streamline production processes and reduce labor costs.

d. Sustainability: Emphasis on eco-friendly materials and processes to minimize environmental impact.

e. Customization: Growing demand for customized panel designs to meet specific customer requirements and aesthetic preferences.

6. Conclusion:

Stamped sheet metal panels represent a crucial component in modern manufacturing and construction industries. Their versatility, cost-effectiveness, and performance make them indispensable for a wide range of applications. As technology continues to advance, we can expect further innovations in materials, processes, and design, driving the evolution of stamped sheet metal panels for years to come.
