Pvdf Aluminium Honeycomb Panel

Aluminum honeycomb composite panel is a kind of high-grading external building construction material. This panel was applied in aeronautic industry in the past.  The surface layer of such panel is aluminum alloy sheet, while the central layer is the honeycomb structure made of aluminum foil. Aluminum honeycomb panel has excellent rigidity and is the best one of metallic wall material available in this day.

A high-grade external building material, aluminum honeycomb composite panel.Panels like this were used in aeronautics.An aluminum alloy sheet makes up the surface layer, while aluminum foil forms the honeycomb structure.The best metallic wall material available today is aluminum honeycomb panel because of its excellent rigidity.A wide range of industries use it, such as modern architecture, trains, cars, and ships.

PVDF color protection layer is fluorocarbon polymer, the base of which is KYNAR500 polyvinylidene resin fluoride invented by American Pennwalt Company. This kind of protection layer has superb performance in anti-efflorescence, durability and corrosion resistance. Therefore, it can be widely used in various climates and environments, from the chilly and dry Northern Europe to the torrid and humid tropical zones.

The aluminum honeycomb panel is made of honeycomb core, surface aluminum panel and bottom aluminum panel adhesive with environmental protection glue. Its main materials are high-quality of 3003H24 or 5052AH14 aluminum plates with thickness of 0.8-1.5mm for surface panel and 0.6-1.0mm for bottom panel. The patterns can be stone, marble/granite/ceramic, wood veneer/bamboo veneer, stainless steel, fiberglass (FRP), etc.

Usually, the surface aluminum panel is treated by PVDF coating or PE coating. PVDF(Polyvinylidene Fluoride) coating is suitable for outdoor because of its good  properties of anti-weathering, anti-contamination and self-cleaning. Due to Polyester(PE) paint's great nature, it can achieve versatile vivid color and higher gloss rate than PVDF. It is ideal for interior wall, decoration and signboard materials. And it can cut down your cost a lot.

The team concept

A talent's worth

It's not about how much money you make, it's about how loyal you are to your work.

Customer focus, excellent service.

As well as border discipline and law, unity and cooperation are important.

We've got a great team

As a whole, we are united in purpose, and we are united in thought.

Cultivating talent is one of the most important aspects of talent development

The purpose of this strategy is to develop a talent echelon which will be able to distinguish themselves from one another via such key elements as introduction, training, innovation, and reusing, loving talents and cherishing talents, talent strategy, creating a win-win situation, promoting two-way development of both talent and enterprise.

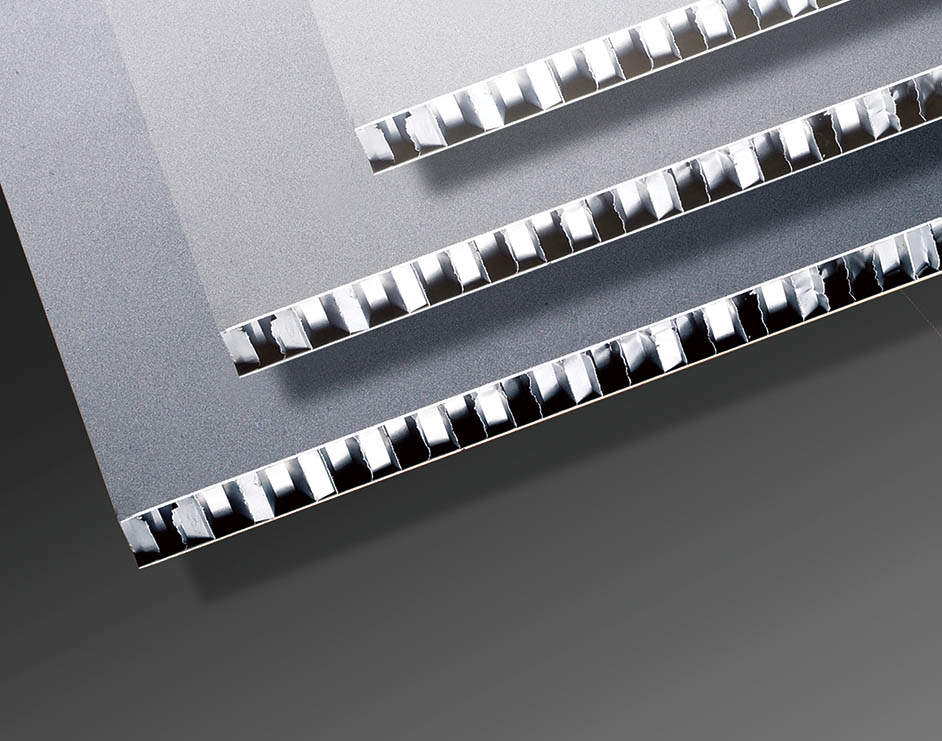

pvdf aluminium honeycomb panel (3)pvdf aluminium honeycomb panel (2)pvdf aluminium honeycomb panel (1)
