Cutting laminated boards with precision and efficiency requires the right composite panel saw. These specialized saws are designed to handle the unique challenges posed by laminated materials, including preventing chipping, ensuring clean edges, and maintaining accuracy. This comprehensive guide explores the best composite panel saws for cutting laminated boards, key features to consider, and practical advice for achieving professional results.
A composite panel saw is a machine specifically engineered to cut large panels made from composite materials such as laminated boards, plywood, MDF, aluminum composite panels (ACP), and other sheet goods. These saws come in various styles, including vertical panel saws and sliding table saws, each offering distinct advantages depending on the application.
- Vertical Panel Saws: These saws hold the panel vertically and use a sliding saw head to make cuts. They save floor space, reduce material handling, and provide accurate cuts ideal for large panels.
- Sliding Table Saws: These feature a horizontal table that slides the panel through a stationary blade, offering flexibility for miters, bevels, and compound cuts.
Vertical panel saws are often preferred for laminated boards due to their space efficiency and ability to handle large panels with precision[2][7].
The blade is the heart of any panel saw. For laminated boards, choosing the right blade is critical to avoid chipping and achieve clean cuts.
- Triple Chip Grind (TCG) Blades: These blades feature alternating flat and trapezoidal teeth, designed to cut composite materials cleanly without dulling quickly. They provide chip-free edges on laminated surfaces[8].
- High Tooth Count Carbide-Tipped Blades: An 80-tooth carbide blade, such as the Bosch 10" 80-tooth blade, is highly recommended for cutting laminated boards cleanly, especially on table saws or circular saws[4].
- Scoring Blades: Many composite panel saws come with a scoring blade that makes a preliminary shallow cut to reduce chipping on the top and bottom surfaces.
- Cut Depth: Look for saws that can handle the thickness of your laminated boards, often up to 60mm or more for wood-based panels and up to 20mm for aluminum composites[6][9].
- Cut Accuracy: Precision is paramount. Top-quality vertical panel saws offer tolerances as tight as 0.005" straight and square, ensuring cuts ready for immediate use without additional finishing[2][9].
A rotating saw head that locks at 90-degree increments allows for both rip and crosscuts, increasing versatility. Adjustable rulers and digital measuring systems enhance ease of use and precision[2][6].
Effective dust extraction is essential when cutting laminated boards to maintain a clean work environment and protect operator health. Modern panel saws include optimized dust collection at the cutting point and secondary extraction features[7][10].
- Robust Frame and Sliding Table: Aluminum alloy sliding tables provide durability and smooth movement, essential for handling large laminated panels[3].
- Support Rollers and Clamps: These features stabilize panels during cutting, minimizing vibration and improving cut quality[3][5].
Safety Speed Manufacturing offers a range of vertical panel saws designed for high precision and continuous use. Their saws feature:
- Cut depths from 1 3/4" to 2 1/8" allowing multiple panels to be cut simultaneously.
- Cut accuracy down to 0.005" straight and square.
- Rotating saw heads for rip and crosscuts.
- Compatibility with a wide range of materials including laminate, melamine, acrylics, and aluminum composites.
- Optional accessories such as dust kits and hold-down bars improve handling and cleanliness[2][9].

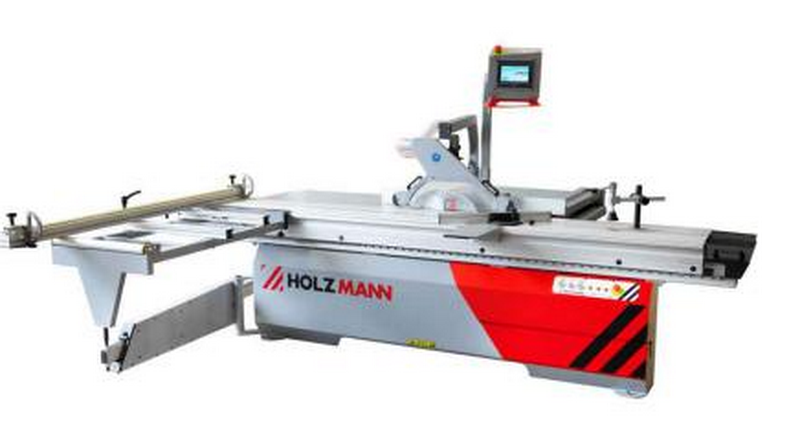

This model offers:
- Maximum cutting capacity of 2200 mm vertically and 4200 mm horizontally.
- Powerful 3.0 kW motor with a main saw blade and scoring blade.
- Digital measuring system for precise height adjustment.
- Pneumatic working pressure for smooth operation.
- Suitable for MDF, solid wood boards, thermoplastic foam boards, aluminum plates, and drywall[6].

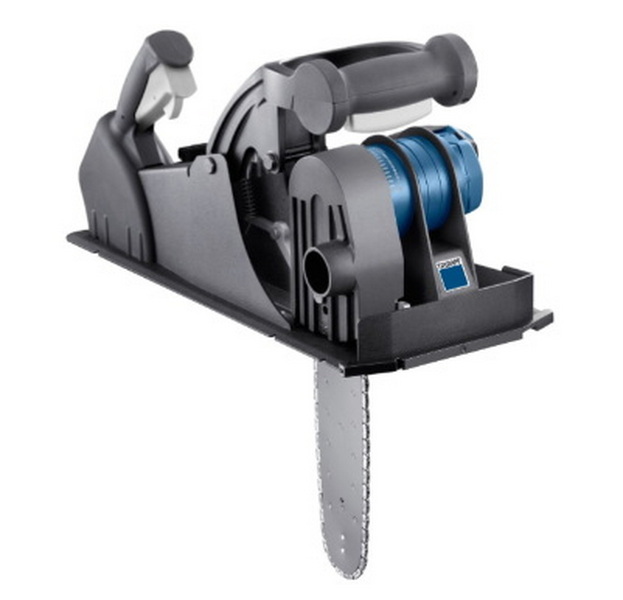

A portable panel cutter designed for thick composite panels up to 165mm, tested up to 200mm thickness:
- Chain-driven cutting system with tensioning and guide rail options.
- Designed for minimal blade wear and clean cuts.
- On-tool extraction for dust control.
- Ideal for on-site cutting of large composite panels, including aluminum composites[5].
Features include:
- Heavy saw unit for robust cutting power.
- 45-degree digital angle display for bevel cuts.
- Slider push button for smooth sliding table control.
- Motorized tilting movement and automatic scoring up-down mechanism.
- Aluminum alloy construction for durability and lightweight handling[3].
- Use the Correct Blade: Always use a triple chip grind or high-tooth-count carbide blade designed for laminated materials to prevent chipping[4][8].
- Set Blade Depth Properly: The blade should be set just deep enough to cut through the panel to reduce tear-out.
- Feed Rate: Maintain a steady, moderate feed rate; too fast can cause chipping, too slow can burn the edges.
- Use Scoring Blades: If available, scoring blades make a shallow pre-cut to reduce laminate chipping on both sides.
- Stabilize Panels: Use clamps, support rollers, or stack multiple panels to minimize vibration and movement during cutting[4][5].
- Dust Extraction: Connect dust extraction systems to maintain a clean workspace and prolong blade life[7][10].
Choosing the best composite panel saw for cutting laminated boards depends on your specific needs, including the size and thickness of panels, production volume, and available workspace. Vertical panel saws, such as those from Safety Speed Manufacturing and Holzmann, provide excellent accuracy, space efficiency, and versatility for laminated boards. Portable options like the TRUMPF TPC165 offer flexibility for on-site cutting of thick composite panels.
Key factors include selecting the right blade-preferably a triple chip grind or high-tooth-count carbide blade-ensuring proper blade depth and feed rate, and utilizing dust extraction systems for safety and cleanliness. With these considerations, a composite panel saw can deliver clean, precise cuts on laminated boards, enhancing productivity and finish quality in woodworking and fabrication projects.
The best blades are triple chip grind (TCG) blades or high-tooth-count carbide-tipped blades (around 80 teeth) designed specifically for composite materials. These blades reduce chipping and provide clean, smooth edges[4][8].
Yes, vertical panel saws are versatile and can cut a wide range of materials including plywood, MDF, aluminum composite panels, plastics, acrylics, and even some metals, provided the correct blade is used[2][7].
High-quality composite panel saws offer cut accuracy within 0.005" straight and square, which is precise enough for most cabinetry and furniture manufacturing applications without additional finishing[2][9].
Dust extraction is highly recommended to maintain a clean work environment, protect operator health, and extend blade life. Many modern composite panel saws come with built-in dust collection ports and systems[7][10].
Regular maintenance includes blade sharpening or replacement, cleaning dust and debris from the saw and guides, checking and adjusting blade tension, lubricating moving parts, and inspecting dust extraction systems for blockages[2][5].
